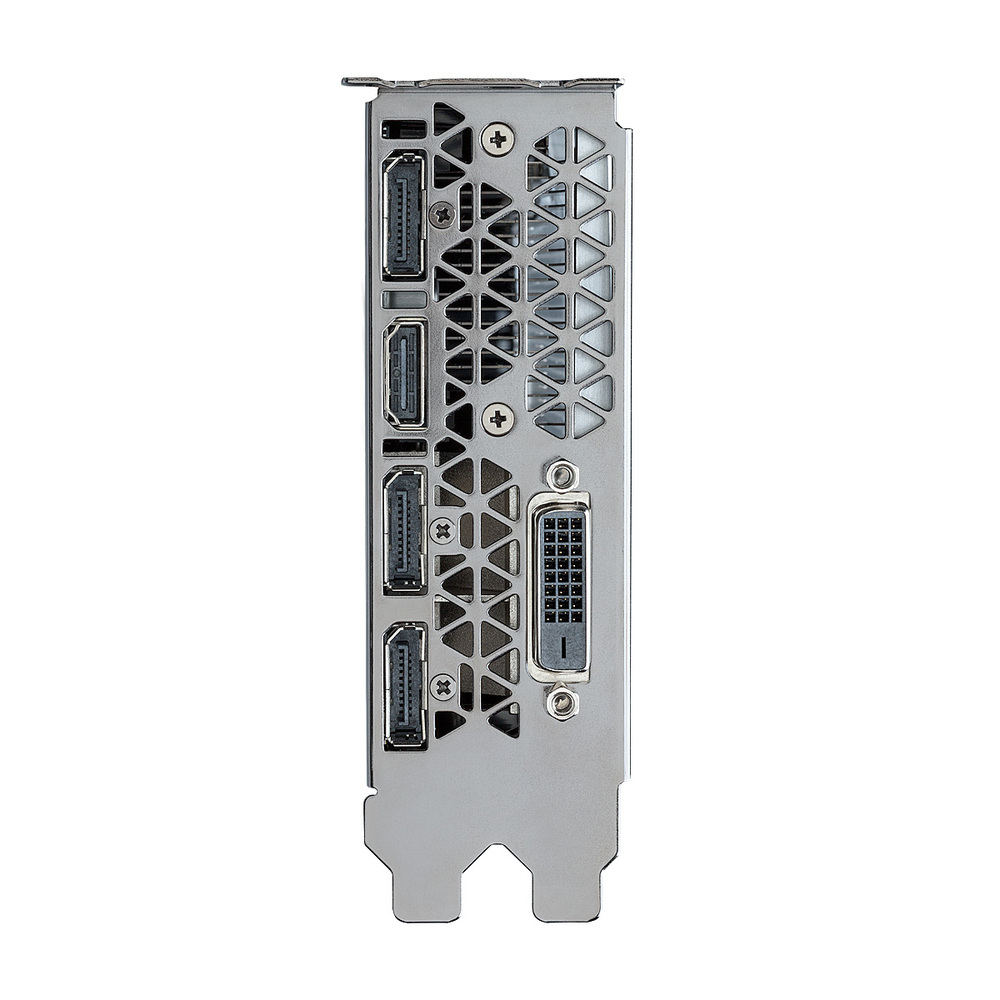

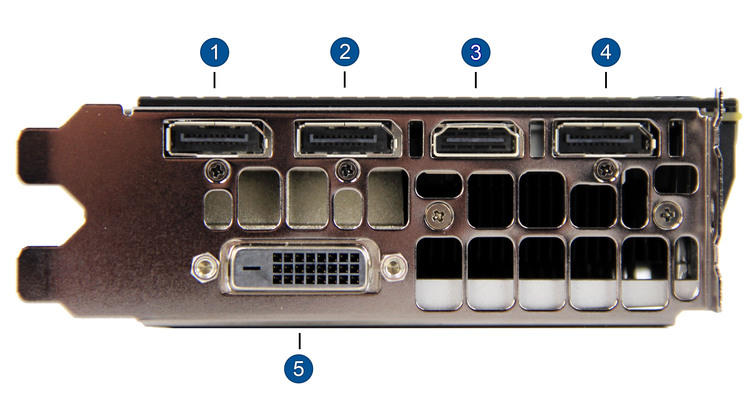

Zotac GeForce GTX 1080 8GB Ports
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
HDMI 2.0b Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160). Also supports HDR.
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
Dual-Link DVI-D Out Port: Outputs digital video at up to (2560x1600 @ 60Hz). Not compatible with VGA adapters.
Sorry, we have no advice for this part!
Model: NVIDIA ZT-P10800A-10P
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | GeForce |
| Interface | PCI Express 3.0 x16 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
GPU Specifications | |
| Core Speed | 1607 MHz |
| Boost Speed | 1733 Mhz |
| Stream Processors | 2560 |
Memory Specifications | |
| Video Memory | 8GB |
| Memory Type | GDDR5X |
| Memory Speed | 10000 MHz |
| Memory Bus Width | 256-bit |
| Bandwidth | 320 GB/s |
Performance | |
| Single Precision Floating Point (Peak) | 9 Tflops |
Additional Information | |
| Cooling System | Blower Type |
| DirectX Support | DirectX 12 |
| CUDA Support | 6.1 |
| OpenGL Support | 4.5 |
Outputs | |
| Port 1 | DisplayPort |
| Port 2 | DisplayPort |
| Port 3 | DisplayPort |
| Port 4 | HDMI |
| Port 5 | Dual-Link DVI |
Power Connectors | |
| Plug 1 | 8-pin PCI-E |
Dimensions | |
| Length | 266.7 mm (10.5 in) |
| Height | 111.2 mm (4.4 in) |
| Width | 38.1 mm (1.5 in) |
