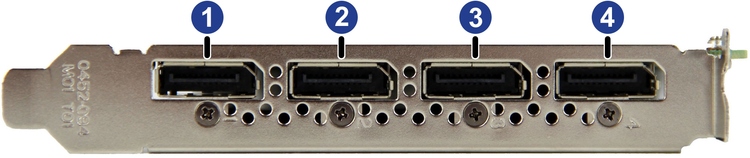

PNY Quadro P2200 PCI-E 5GB Ports
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
The NVIDIA Quadro P2200 is a mid-range, Pascal-based professional graphics card. It a minor revision to the earlier P2000 model, with small boost in core count and slightly faster memory. Like most Quadro cards, a wide range of technology standards are supported: DirectX 12, Vulkan, OpenGL 4.5, CUDA, and OpenCL (to name a few).
In addition to solid performance for professional 3D applications, the Quadro P2200 also supports higher resolution monitors than previous generations. It can run up to four 5K screens at the same time via DisplayPort 1.4 outputs. HDMI or DVI monitors can be connected through adapters, available for purchase separately, but when using such adapters the maximum resolution will be reduced substantially if not using an DP to HDMI 2.0 Active adapter.
In addition to solid performance for professional 3D applications, the Quadro P2200 also supports higher resolution monitors than previous generations. It can run up to four 5K screens at the same time via DisplayPort 1.4 outputs. HDMI or DVI monitors can be connected through adapters, available for purchase separately, but when using such adapters the maximum resolution will be reduced substantially if not using an DP to HDMI 2.0 Active adapter.
Model: PNY VCQP2200-SB
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | Quadro |
| Interface | PCI Express 3.0 x16 |
| Maximum Digital Resolution | 5120x2880 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
| Multi-GPU Technology | Not Available |
GPU Specifications | |
| Stream Processors | 1280 |
Memory Specifications | |
| Video Memory | 5GB |
| Memory Type | GDDR5X |
| Memory Bus Width | 160-bit |
| Bandwidth | 140 GB/s |
Performance | |
| Single Precision Floating Point (Peak) | 3.8 Tflops |
Additional Information | |
| Cooling System | Small Fan and Heatsink |
| DirectX Support | DirectX 12 |
| OpenGL Support | 4.5 |
| Removable Backplate | No |
| Slot Width | 1 |
Outputs | |
| Port 1 | DisplayPort |
| Port 2 | DisplayPort |
| Port 3 | DisplayPort |
| Port 4 | DisplayPort |
Power Connectors | |
| Plug 1 | None |
Dimensions | |
| Length | 201 mm (7.9 in) |
| Height | 111.76 mm (4.4 in) |
| Net Weight | 0.432 kg (1.0 lbs) |
