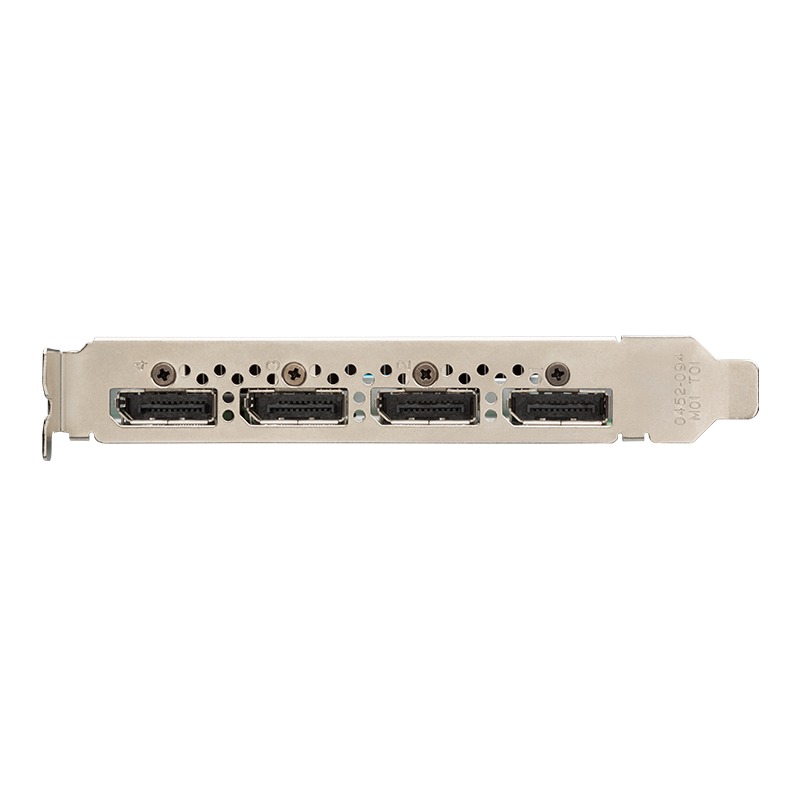

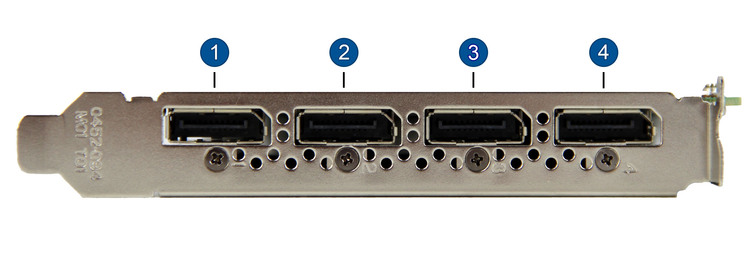

PNY Quadro M2000 PCI-E 4GB Ports
DisplayPort 1.2 Out Port: Outputs digital video and audio at up to 5K (5120x2880) @ 30Hz or 3840x2160 @ 75Hz.
DisplayPort 1.2 Out Port: Outputs digital video and audio at up to 5K (5120x2880) @ 30Hz or 3840x2160 @ 75Hz.
DisplayPort 1.2 Out Port: Outputs digital video and audio at up to 5K (5120x2880) @ 30Hz or 3840x2160 @ 75Hz.
DisplayPort 1.2 Out Port: Outputs digital video and audio at up to 5K (5120x2880) @ 30Hz or 3840x2160 @ 75Hz.
Model: PNY VCQM2000-PB
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | Quadro |
| Interface | PCI Express 3.0 x16 |
| Maximum DisplayPort Resolution | 4096x2160 |
| Maximum DVI Resolution | 2560x1600 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
GPU Specifications | |
| Stream Processors | 768 |
Memory Specifications | |
| Video Memory | 4GB |
| Memory Type | GDDR5 |
| Memory Bus Width | 128-bit |
| Bandwidth | 106 GB/s |
Performance | |
| Single Precision Floating Point (Peak) | 1.8 Tflops |
Additional Information | |
| Cooling System | Small Fan and Heatsink |
| DirectX Support | DirectX 12 |
| CUDA Support | 5.0 |
| OpenGL Support | 4.5 |
Outputs | |
| Port 1 | DisplayPort |
| Port 2 | DisplayPort |
| Port 3 | DisplayPort |
| Port 4 | DisplayPort |
Power Connectors | |
| Plug 1 | None |
Dimensions | |
| Length | 167.6 mm (6.6 in) |
| Height | 111.15 mm (4.4 in) |

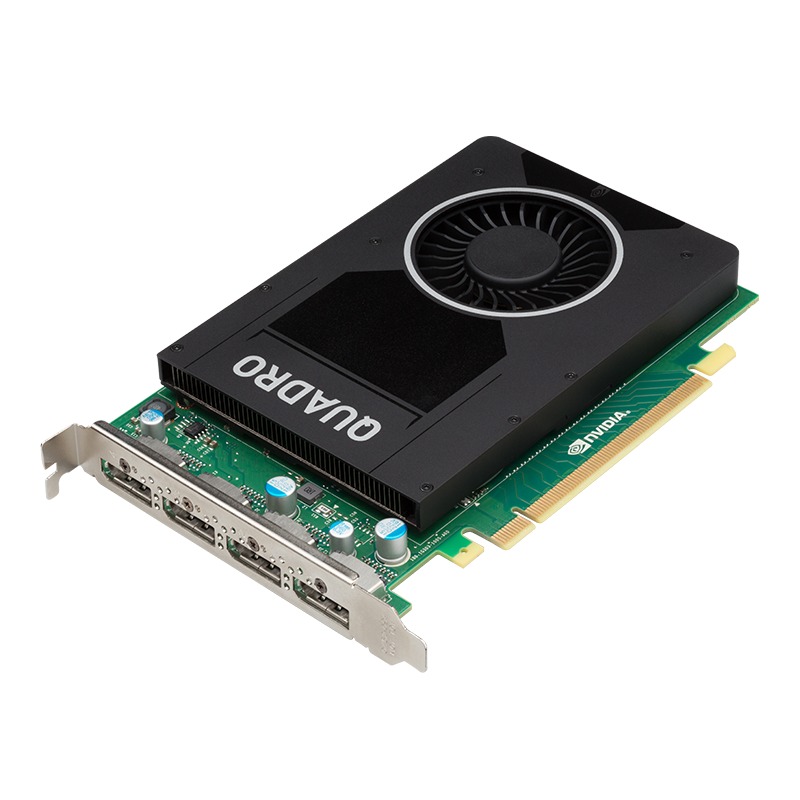

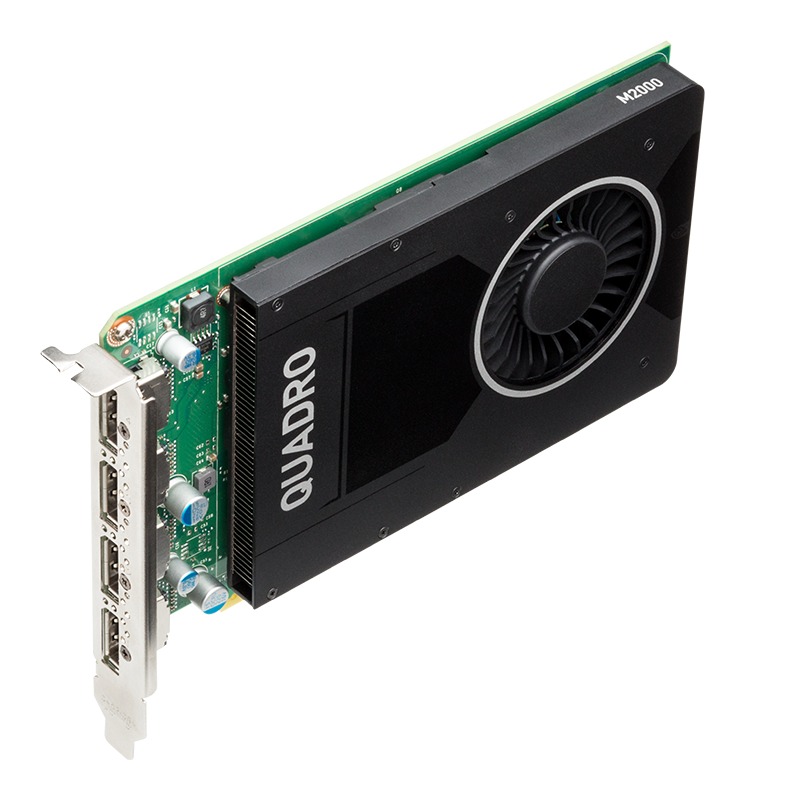

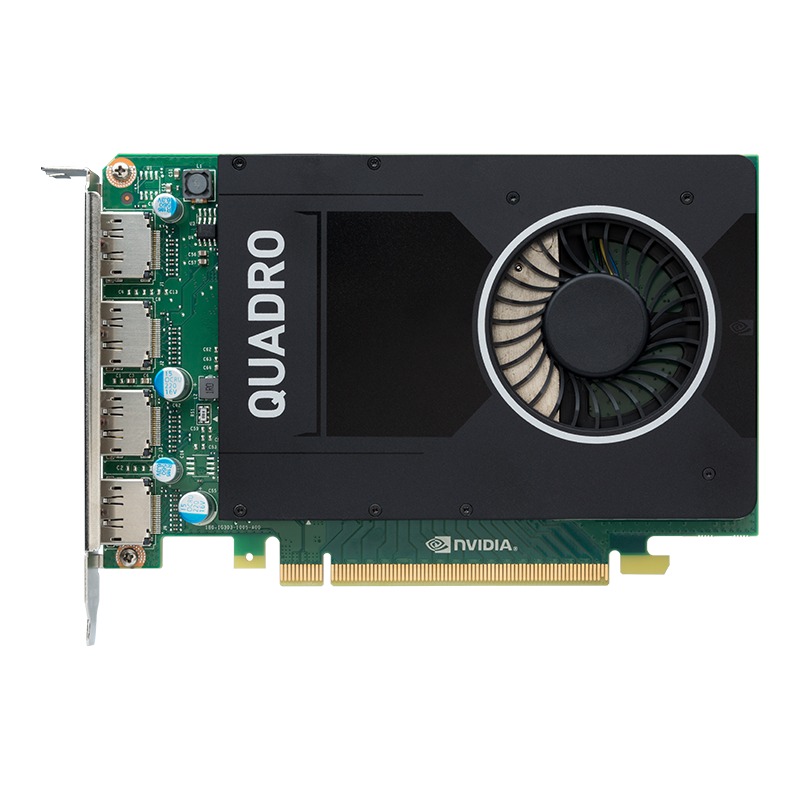

The Quadro M2000 delivers an incredible creative experience across a broad range of professional 3D applications. This advanced graphics board features an NVIDIA Maxwell-based GPU, 4 GB of ultra-fast on-board memory and the power to drive four 4K displays natively. This makes it an excellent choice for accelerating product development and content creation workflows that demand fluid interactivity with complex models and scenes. Creative professionals can tap into this increased performance - as well as hardware HEVC encode and decode engines-to accelerate both creation and playback of HEVC content.
Designed and built specifically for professional workstations, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries including manufacturing, media and entertainment, sciences, and energy. Professionals trust them to realize their most ambitious visions- whether its product design, visualization and simulation, or spectacular visual storytelling-and get results to market faster.
