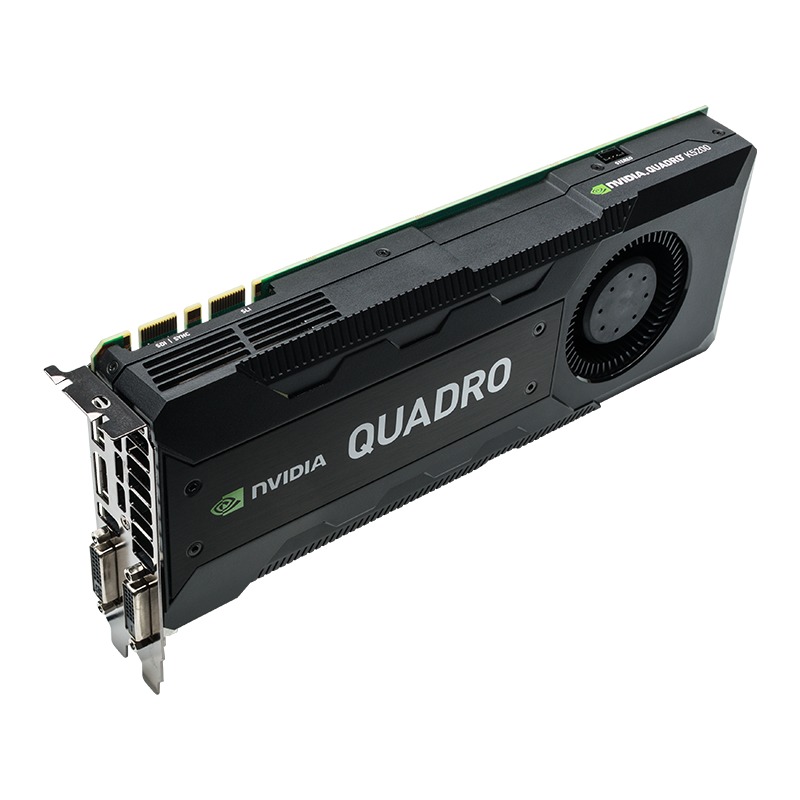

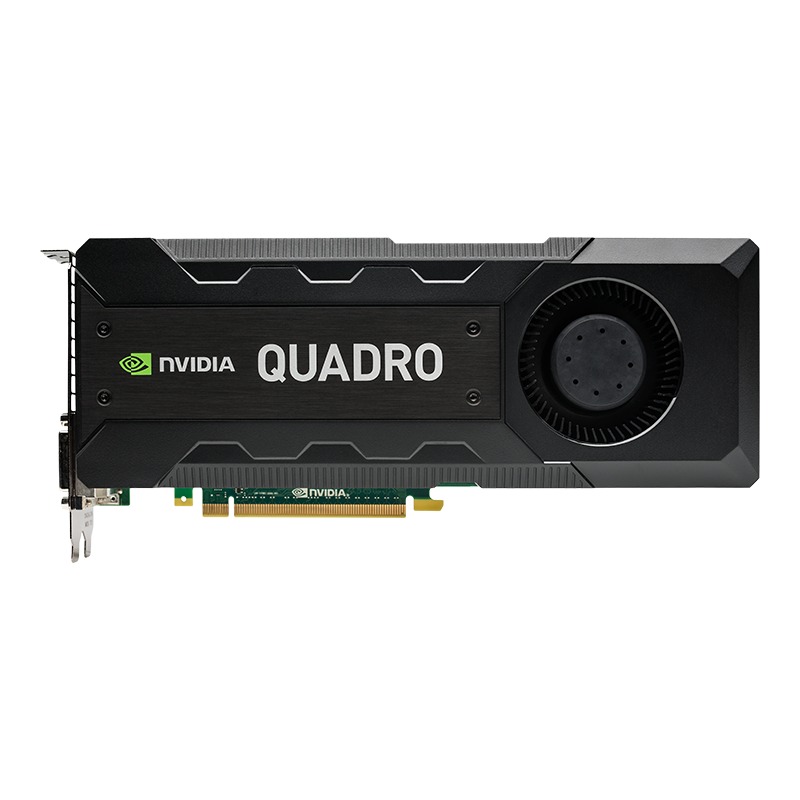

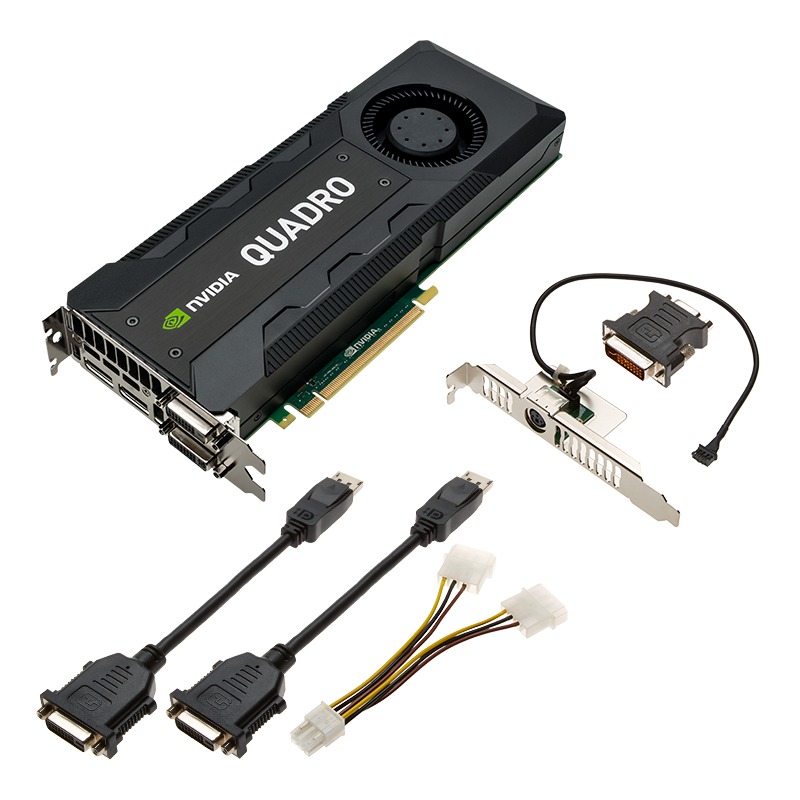

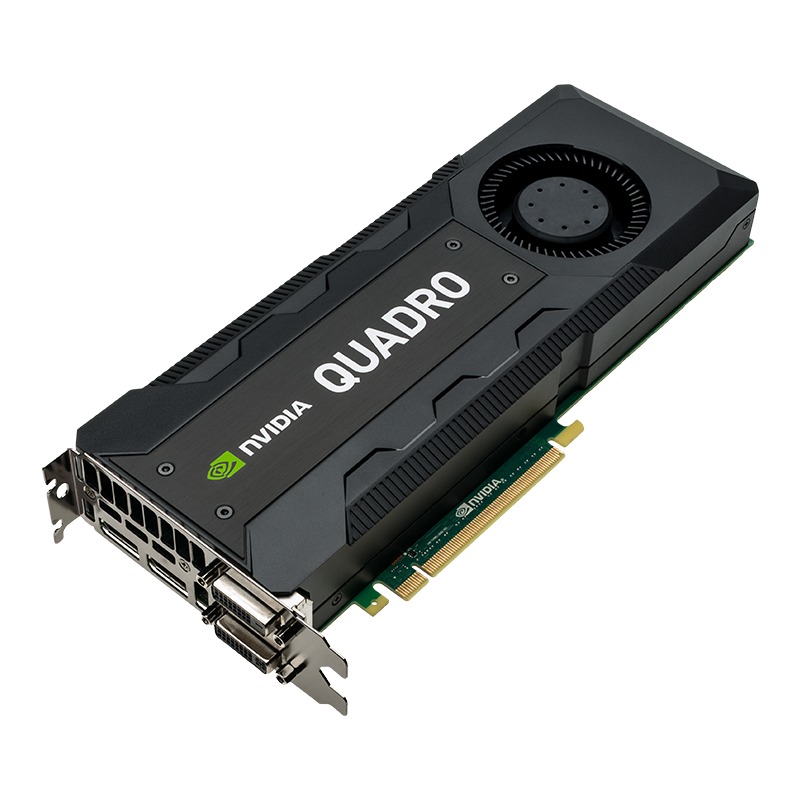

Model: PNY VCQK5200-PB
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | Quadro |
| Interface | PCI Express 3.0 x16 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
GPU Specifications | |
| Stream Processors | 2304 |
Memory Specifications | |
| Video Memory | 8GB |
| Memory Type | GDDR5 |
| Memory Bus Width | 256-bit |
| Bandwidth | 192 GB/s |
Additional Information | |
| Cooling System | Blower Type |
| DirectX Support | DirectX 11 |
| CUDA Support | 3.5 |
| OpenGL Support | 4.4 |

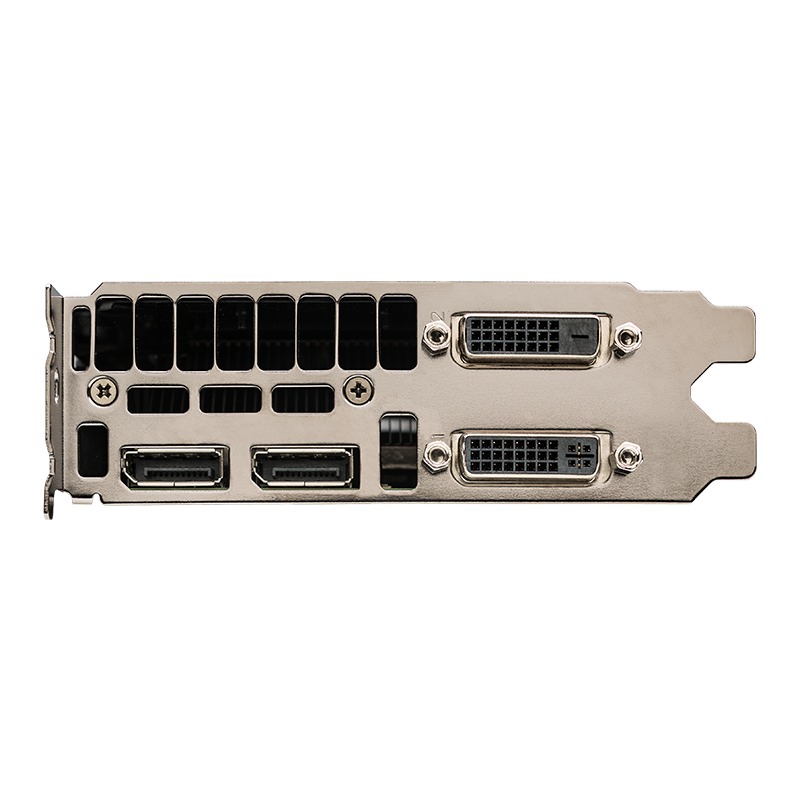

Outputs | |
| Port 1 | Dual-Link DVI |
| Port 2 | Dual-Link DVI |
| Port 3 | DisplayPort |
| Port 4 | DisplayPort |
Power Connectors | |
| Plug 1 | 6-pin PCI-E |
Dimensions | |
| Length | 266.7 mm (10.5 in) |
| Height | 111.15 mm (4.4 in) |
The NVIDIA Quadro K5200 gives you amazing application performance and capability, making it faster and easier to accelerate 3D models, render complex scenes, and simulate large datasets. 8GB of GDDR5 GPU memory with ultra-fast bandwidth allows you to create and render large, complex models and compute massive datasets. Plus, there's the all-new display engine that drives up to four displays natively with DisplayPort 1.2 support for ultra-high resolutions like 3840 x 2160 at 60 Hz with 30-bit color. The Quadro K5200 is also fully compatible with NVIDIA Quadro Sync, which allows you to frame-lock multiple displays together, and also supports NVIDIA's SDI input and output boards for broadcast or digital cinema production workflows.
Designed and built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media and entertainment, sciences, and energy. Professionals trust them to realize their most ambitious visions- whether its product design, visualization and simulation, or spectacular visual storytelling-and get results to market faster.
