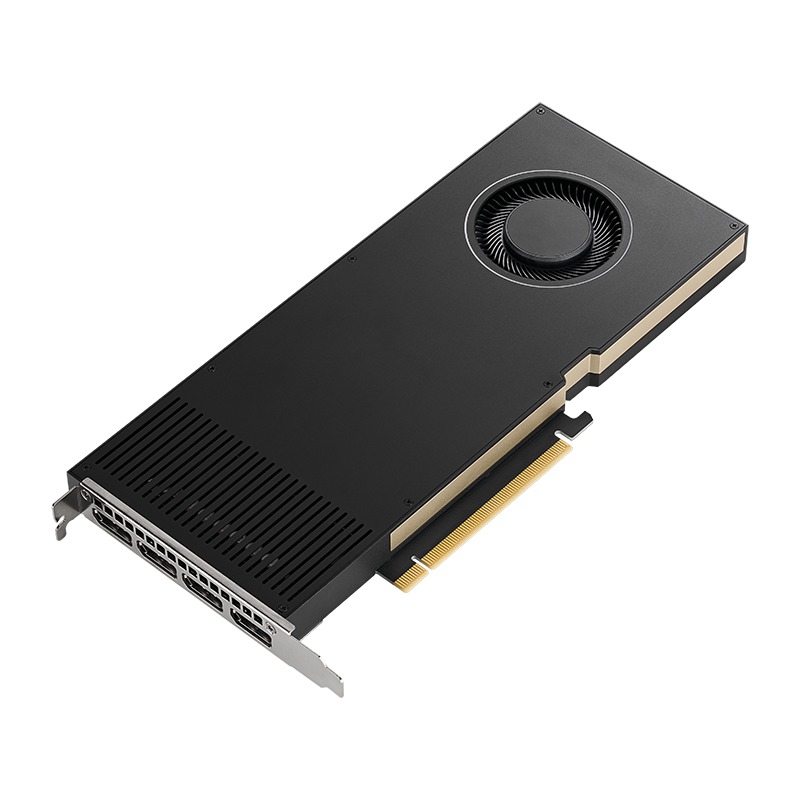

The NVIDIA RTX A4000 is a professional Ampere-based graphics card, offering good overall performance along with specialized ray tracing and machine learning inference hardware (RT cores and Tensor cores, respectively). While not sporting as much onboard memory as higher-end A-series models, the RTX A4000's 16GB of VRAM is substantially more than most consumer GeForce models. A rarity among modern video cards, the RTX 4000 uses a single-width cooler, allowing it to take up less space in systems with many other expansion cards or easily fit into smaller form factor computers.
To complement its focus on professional 3D applications, the RTX A4000 supports up to four monitors at the same time. Four full-size DisplayPort outputs are present on the back of the card, and a wide range of adapters are available from third-party vendors if you need to adapt to other video standards like DVI or HDMI.
To complement its focus on professional 3D applications, the RTX A4000 supports up to four monitors at the same time. Four full-size DisplayPort outputs are present on the back of the card, and a wide range of adapters are available from third-party vendors if you need to adapt to other video standards like DVI or HDMI.
Model: PNY VCNRTXA4000-BLK
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | Quadro |
Series | Ampere Workstation |
Motherboard Connection | PCI Express x16 |
Interface | PCI Express 4.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
Multi-GPU Technology | Not Available |
TGP | 140 W |
GPU Specifications | |
Stream Processors | 6144 |
Tensor Cores | 192 |
Memory Specifications | |
Video Memory | 16GB |
Memory Type | GDDR6 |
Memory Bus Width | 256-bit |
Bandwidth | 448 GB/s |
Performance | |
Single Precision Floating Point (Peak) | 19.2 Tflops |
Additional Information | |
Cooling System | Blower Type |
DirectX Support | DirectX 12 |
CUDA Support | 11 |
OpenGL Support | 4.5 |
Removable Backplate | No |
Slot Width | 1 |
Quadro Sync Support | Quadro Sync II |

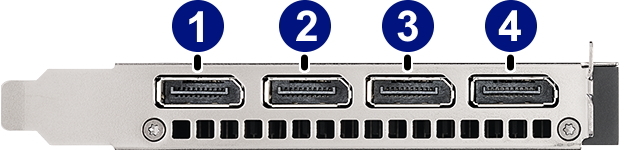

Outputs | |
Port 1 | DisplayPort 1.4a |
Port 2 | DisplayPort 1.4a |
Port 3 | DisplayPort 1.4a |
Port 4 | DisplayPort 1.4a |
Power Connectors | |
Plug 1 | 6-pin PCI-E |
Dimensions | |
Length | 241 mm (9.5 in) |
Height | 112 mm (4.4 in) |
Width | 19 mm (0.7 in) |
Net Weight | 0.499 kg (1.1 lbs) |
