The RTX 5000 Ada Generation is a high-end workstation graphics card built on NVIDIA's Ada Lovelace architecture. It offers raw performance similar to the more mainstream GeForce RTX 4080 but with a focus on support for professional applications and twice as much onboard VRAM (32GB). As with most workstation GPUs, like NVIDIA's former Quadro series, the single-fan cooler on the RTX 5000 Ada is ideally suited for use in multi-GPU systems - but noisier, especially under load, than most multi-fan consumer video cards.
In addition to great performance for professional 3D applications, the RTX 5000 Ada Generation also supports four DisplayPort monitors at up to 4K resolution (or two at 8K) at the same time. One adapter to HDMI is also included, for those who need to use a screen that lacks direct DisplayPort input, and additional adapters can be purchased separately.
In addition to great performance for professional 3D applications, the RTX 5000 Ada Generation also supports four DisplayPort monitors at up to 4K resolution (or two at 8K) at the same time. One adapter to HDMI is also included, for those who need to use a screen that lacks direct DisplayPort input, and additional adapters can be purchased separately.
Model: NVIDIA VCNRTX5000ADA-PB
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | Pro Viz |
Series | Ada Lovelace |
Motherboard Connection | PCI Express x16 |
Interface | PCI Express 4.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
TGP | 250 W |
GPU Specifications | |
Stream Processors | 12,800 |
Tensor Cores | 400 |
Memory Specifications | |
Video Memory | 32GB |
Memory Type | GDDR6 |
Memory Bus Width | 256-bit |
Bandwidth | 576 GB/s |
Performance | |
Single Precision Floating Point (Peak) | 65.3 Tflops |
Additional Information | |
Cooling System | Blower Type |
Removable Backplate | No |
Slot Width | 2 |
Quadro Sync Support | Quadro Sync II |

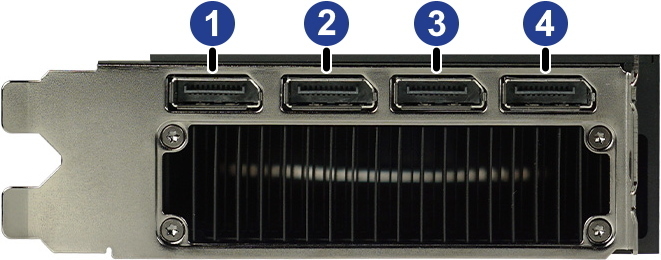

Outputs | |
Port 1 | DisplayPort 1.4a |
Port 2 | DisplayPort 1.4a |
Port 3 | DisplayPort 1.4a |
Port 4 | DisplayPort 1.4a |
Power Connectors | |
Plug 1 | 16-Pin PCIe 5.0 |
Dimensions | |
Length | 267 mm (10.5 in) |
Height | 112 mm (4.4 in) |
Width | 42 mm (1.7 in) |
Net Weight | 1.081 kg (2.4 lbs) |
