The RTX 4500 Ada Generation is a high-end workstation graphics card built on NVIDIA's Ada Lovelace architecture. As the name indicates, its performance and onboard VRAM capacity fall between the 4000 Ada and 5000 Ada models, and it is ideal for demanding engineering and CAD programs. Like most workstation GPUs, the single-fan cooler on the RTX 4500 Ada is ideally suited for use in multi-GPU systems - but noisier, especially under load, than most multi-fan consumer video cards.
In addition to solid performance for professional 3D applications, the RTX 4500 Ada Generation also supports four DisplayPort monitors at up to 4K resolution (or two at 8K) at the same time. Adapters to HDMI can be purchased separately, for those who need to use a screen that lacks direct DisplayPort input.
In addition to solid performance for professional 3D applications, the RTX 4500 Ada Generation also supports four DisplayPort monitors at up to 4K resolution (or two at 8K) at the same time. Adapters to HDMI can be purchased separately, for those who need to use a screen that lacks direct DisplayPort input.
Model: NVIDIA VCNRTX4500ADA-PB
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | Pro Viz |
Series | Ada Lovelace |
Motherboard Connection | PCI Express x16 |
Interface | PCI Express 4.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
TGP | 210 W |
GPU Specifications | |
Stream Processors | 7,680 |
Tensor Cores | 240 |
Memory Specifications | |
Video Memory | 24GB |
Memory Type | GDDR6 |
Memory Bus Width | 192-bit |
Bandwidth | 432 GB/s |
Performance | |
Single Precision Floating Point (Peak) | 39.6 Tflops |
Additional Information | |
Cooling System | Blower Type |
Removable Backplate | No |
Slot Width | 2 |
Quadro Sync Support | Quadro Sync II |

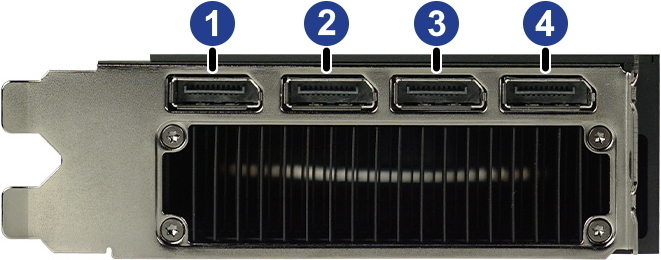

Outputs | |
Port 1 | DisplayPort 1.4a |
Port 2 | DisplayPort 1.4a |
Port 3 | DisplayPort 1.4a |
Port 4 | DisplayPort 1.4a |
Power Connectors | |
Plug 1 | 16-Pin PCIe 5.0 |
Uses Power Adapter | Yes |
Dimensions | |
Length | 267 mm (10.5 in) |
Height | 69 mm (2.7 in) |
Width | 42 mm (1.7 in) |
Net Weight | 1.079 kg (2.4 lbs) |
