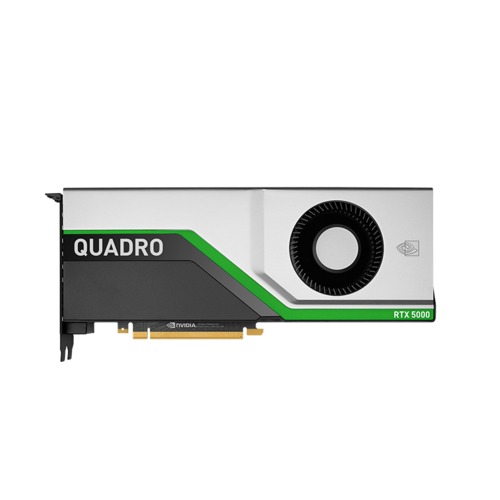

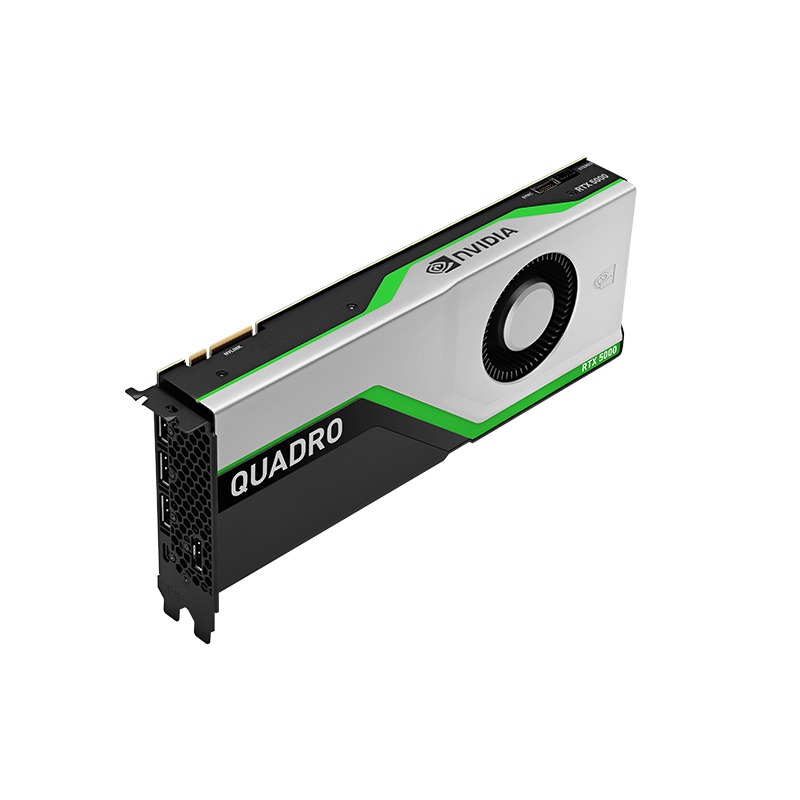

The NVIDIA Quadro RTX 5000 is a professional Turing-based graphics card, offering great overall performance along with specialized ray tracing and machine learning inference hardware (RT cores and Tensor cores, respectively). While not sporting as much onboard memory as higher-end Quadro models, the RTX 5000's 16GB of VRAM is still more than any contemporary GeForce model. As with most Quadros, the single-fan cooler on this card is ideally suited for use in multi-GPU systems.
In addition to great performance for professional 3D applications, the Quadro RTX 5000 supports up to four monitors at the same time via DisplayPort outputs. It also has a VirtualLink connector - a specialized Type C port combining DisplayPort, USB 3.1, and power for single-cable connectivity to next-generation VR headsets. Using that counts toward the card's limit of four simultaneous outputs.
In addition to great performance for professional 3D applications, the Quadro RTX 5000 supports up to four monitors at the same time via DisplayPort outputs. It also has a VirtualLink connector - a specialized Type C port combining DisplayPort, USB 3.1, and power for single-cable connectivity to next-generation VR headsets. Using that counts toward the card's limit of four simultaneous outputs.
Model: NVIDIA VCQRTX5000-PB
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | Quadro |
Interface | PCI Express 3.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum DVI Resolution | 1920x1200 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |

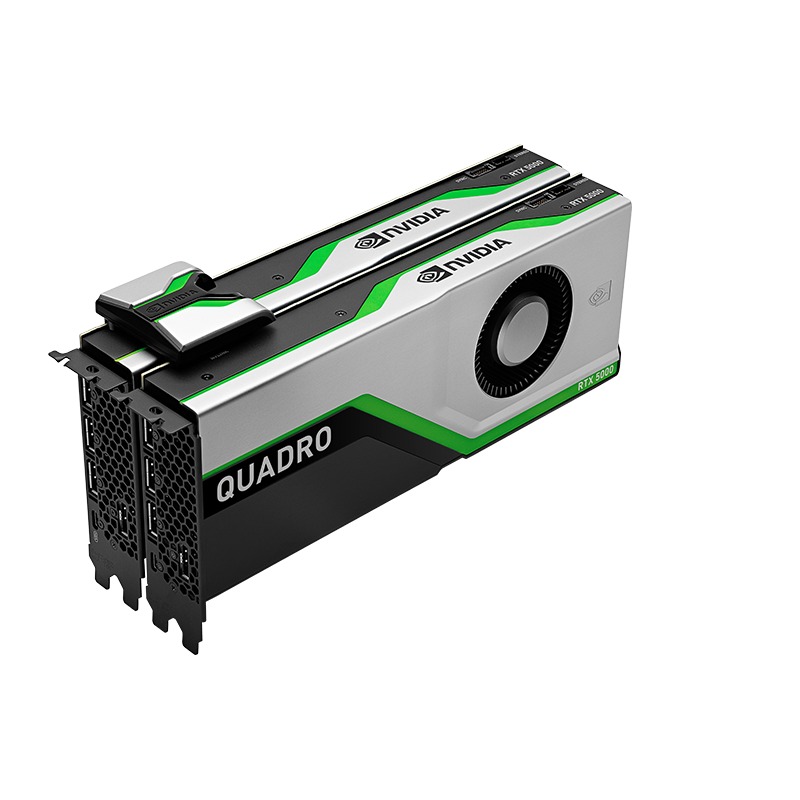

Multi-GPU Technology | NVLink (Quadro RTX) |
GPU Specifications | |
Stream Processors | 3072 |
Tensor Cores | 384 |
Memory Specifications | |
Video Memory | 16GB |
Memory Type | GDDR6 ECC |
Bandwidth | 448 GB/s |
Performance | |
Single Precision Floating Point (Peak) | 11.2 Tflops |
Half Precision Floating Point (Peak) | 22.3 Tflops |
Additional Information | |
Cooling System | Blower Type |
DirectX Support | DirectX 12 |
CUDA Support | 6.5 |
OpenGL Support | 4.5 |
Removable Backplate | No |
Slot Width | 2 |

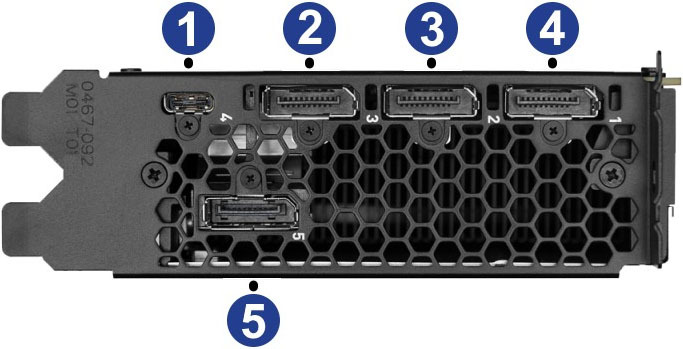

Outputs | |
Port 1 | USB Type-C |
Port 2 | DisplayPort |
Port 3 | DisplayPort |
Port 4 | DisplayPort |
Port 5 | DisplayPort |
Power Connectors | |
Plug 1 | 8-pin PCI-E |
Plug 2 | 6-pin PCI-E |
Dimensions | |
Length | 267 mm (10.5 in) |
Height | 112 mm (4.4 in) |
Width | 42 mm (1.7 in) |
Net Weight | 0.991 kg (2.2 lbs) |
