The NVIDIA Quadro RTX 4000 is a professional Turing-based graphics card, offering good overall performance along with specialized ray tracing and machine learning inference hardware (RT cores and Tensor cores, respectively). While not sporting as much onboard memory as higher-end Quadro models, the RTX 4000's 8GB of VRAM is on par with similarly priced GeForce models. A rarity among modern video cards, the RTX 4000 uses a single-width cooler - allowing it to take up less space in systems which have a lot of other expansion cards or fit easily into smaller form factor computers.
To compliment its focus on professional 3D applications, the Quadro RTX 4000 supports up to four monitors at the same time. Three can be connected via DisplayPort outputs, and the fourth through VirtualLink. That is a newer connector - a specialized Type C port combining DisplayPort, USB 3.1, and power. It was conceived as a single-cable connectivity to next-generation VR headsets, but can also be used (with the included DisplayPort adapter) to connect a normal monitor.
To compliment its focus on professional 3D applications, the Quadro RTX 4000 supports up to four monitors at the same time. Three can be connected via DisplayPort outputs, and the fourth through VirtualLink. That is a newer connector - a specialized Type C port combining DisplayPort, USB 3.1, and power. It was conceived as a single-cable connectivity to next-generation VR headsets, but can also be used (with the included DisplayPort adapter) to connect a normal monitor.
Jon Bach (President) Says:
Puget Systems has discovered a manufacturing defect on RTX 4000 cards, that makes the USB3 VirtualLink port not reliably functional. This problem is not unique to Puget Systems. To our knowledge, it extends to all RTX 4000 cards manufactured since late May 2020. Until this is resolved, we are capping off that port, and not supporting it in our PCs.
Puget Systems has discovered a manufacturing defect on RTX 4000 cards, that makes the USB3 VirtualLink port not reliably functional. This problem is not unique to Puget Systems. To our knowledge, it extends to all RTX 4000 cards manufactured since late May 2020. Until this is resolved, we are capping off that port, and not supporting it in our PCs.
Note: Puget Systems has discovered a manufacturing defect on RTX 4000 cards, that makes the USB3 VirtualLink port not reliably functional. This problem is not unique to Puget Systems. To our knowledge, it extends to all RTX 4000 cards manufactured since late May 2020. Until this is resolved, we are capping off that port, and not supporting it in our PCs.
Model: NVIDIA VCQRTX4000-PB
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | Quadro |
Interface | PCI Express 3.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum DVI Resolution | 1600x1200 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
Multi-GPU Technology | Not Available |
GPU Specifications | |
Stream Processors | 2304 |
Tensor Cores | 288 |
Memory Specifications | |
Video Memory | 8GB |
Memory Type | GDDR6 ECC |
Bandwidth | 416 GB/s |
Performance | |
Single Precision Floating Point (Peak) | 7.1 Tflops |
Half Precision Floating Point (Peak) | 28.5 Tflops |
Additional Information | |
Cooling System | Blower Type |
DirectX Support | DirectX 12 |
CUDA Support | 6.5 |
OpenGL Support | 4.5 |
Removable Backplate | No |
Slot Width | 1 |

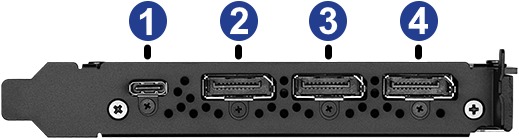

Outputs | |
Port 1 | USB Type-C |
Port 2 | DisplayPort |
Port 3 | DisplayPort |
Port 4 | DisplayPort |
Power Connectors | |
Plug 1 | 8-pin PCI-E |
Dimensions | |
Length | 241 mm (9.5 in) |
Height | 112 mm (4.4 in) |
Width | 19 mm (0.7 in) |
Net Weight | 0.651 kg (1.4 lbs) |
Uses GTX style mounting holes
