NVIDIA GeForce RTX 4070 SUPER 12GB Founders Edition

Video Card

NVIDIA GeForce RTX 4070 SUPER 12GB Founders Edition Main Picture


NVIDIA GeForce RTX 4070 SUPER 12GB Founders Edition Picture 83208NVIDIA GeForce RTX 4070 SUPER 12GB Founders Edition Picture 83209NVIDIA GeForce RTX 4070 SUPER 12GB Founders Edition Picture 83210NVIDIA GeForce RTX 4070 SUPER 12GB Founders Edition Picture 83211
NVIDIA's GeForce RTX 4070 SUPER is a mid-range consumer graphics card in their GeForce RTX 40-series, which is based on the Ada Lovelace architecture. This generation brings substantial increases to overall performance, but without a corresponding increase in power usage - giving it excellent efficiency and resulting in generally cool and quiet operation. It includes less VRAM (12GB) and fewer CUDA cores compared to the more expensive RTX 4080 and 4090, and includes one upgraded video encoder with support for the AV1 codec (versus two on the higher-end models).

This RTX 4070 SUPER "Founders Edition" variant, directly from NVIDIA, uses a unique dual-fan cooling layout. It is a great design for keeping a single card cool and quiet, by venting some heat out the back of the computer while circulating the rest upward within the case.

Finally, in regards to connectivity, there are one HDMI 2.1a and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).

Model: NVIDIA 900-1G141-2534-000

Specifications

Chipset Manufacturer NVIDIA
Product Line GeForce
Series RTX 4000
Model 4070 SUPER
Motherboard Connection PCI Express x16
Interface PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology Not Available
TGP 220 W
GPU Specifications
Core Speed 1,980 MHz
Boost Speed 2,480 Mhz
Stream Processors 7,168
Memory Specifications
Video Memory 12GB
Memory Type GDDR6X
Memory Speed 21,000 MHz
Memory Bus Width 192-bit
Additional Information
Cooling System Quiet Fan and Heatsink
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 2

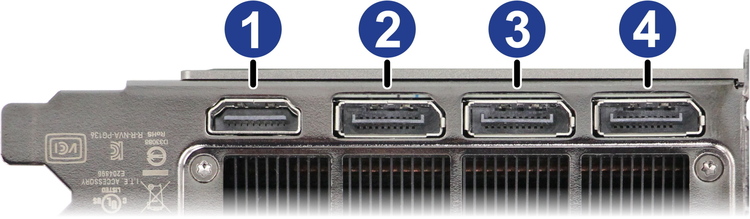

Outputs
Port 1 HDMI 2.1
Port 2 DisplayPort 1.4a
Port 3 DisplayPort 1.4a
Port 4 DisplayPort 1.4a
Power Connectors
Plug 1 16-Pin PCIe 5.0
Dimensions
Length 224 mm (8.8 in)
Height 112 mm (4.4 in)
Width 42 mm (1.7 in)
Net Weight 1.025 kg (2.3 lbs)
