NVIDIA's GeForce RTX 2070 SUPER is part of the second wave of graphics cards based on the Turing GPU architecture. This mid-generation release increases performance substantially over the vanilla RTX 2070, with performance closer to the RTX 2080 at a much lower price point. Like all RTX cards, this model includes dedicated RT cores for ray tracing and Tensor cores for machine learning inference. This specialized hardware enables new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit.
This particular variant, from Asus, has a single-fan "blower" style cooler. This won't be as quiet under load as a dual-fan design, when comparing individual cards, but since it exhausts most of the card's heat out the back of the computer it is much better for use in multi-GPU configurations.
Finally, in regards to connectivity, the RTX 2070 SUPER supports up to four monitors with HDMI 2.0b and three DisplayPort 1.4.
This particular variant, from Asus, has a single-fan "blower" style cooler. This won't be as quiet under load as a dual-fan design, when comparing individual cards, but since it exhausts most of the card's heat out the back of the computer it is much better for use in multi-GPU configurations.
Finally, in regards to connectivity, the RTX 2070 SUPER supports up to four monitors with HDMI 2.0b and three DisplayPort 1.4.
Model: Asus TURBO-RTX2070S-8G-EVO
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | GeForce |
Interface | PCI Express 3.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum HDMI Resolution | 4096x2160 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
Multi-GPU Technology | NVLink (GeForce RTX) |
GPU Specifications | |
Core Speed | 1605 MHz |
Boost Speed | 1770 Mhz |
Stream Processors | 2560 |
Memory Specifications | |
Video Memory | 8GB |
Memory Type | GDDR6 |
Memory Speed | 14,000 MHz |
Memory Bus Width | 256-bit |
Bandwidth | 448 GB/s |
Additional Information | |
Cooling System | Blower Type |
DirectX Support | DirectX 12 |
CUDA Support | 6.5 |
OpenGL Support | 4.5 |
Removable Backplate | No |
Slot Width | 2 |

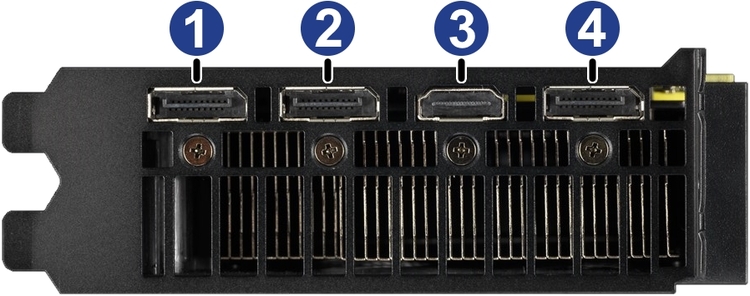

Outputs | |
Port 1 | DisplayPort |
Port 2 | DisplayPort |
Port 3 | HDMI |
Port 4 | DisplayPort |
Power Connectors | |
Plug 1 | 8-pin PCI-E |
Plug 2 | 6-pin PCI-E |
Dimensions | |
Length | 267 mm (10.5 in) |
Height | 116 mm (4.6 in) |
Width | 42 mm (1.7 in) |
