M-Audio Delta 1010LT sound card

Sound Card

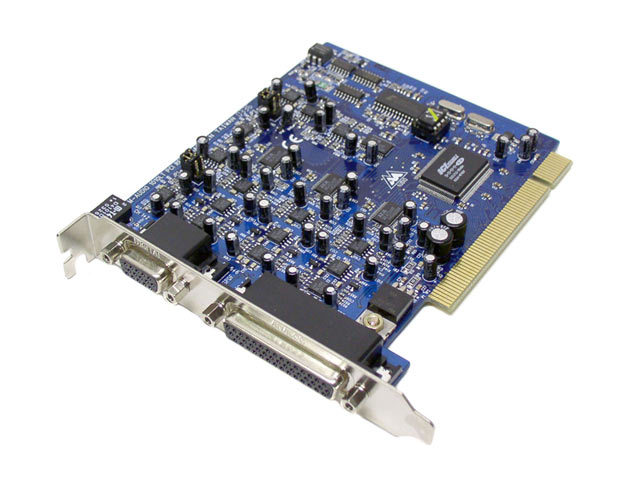

M-Audio Delta 1010LT sound card Main Picture


M-Audio Delta 1010LT sound card Picture 3832M-Audio Delta 1010LT sound card Picture 3833M-Audio Delta 1010LT sound card Picture 3834M-Audio Delta 1010LT sound card Picture 3835M-Audio Delta 1010LT sound card Picture 3836M-Audio Delta 1010LT sound card Picture 3837M-Audio Delta 1010LT sound card Picture 3838M-Audio Delta 1010LT sound card Picture 3839

Model: M-Audio sou-delta-1010lt

Features

  • 8 x 8 analog I/O
  • 2 mic preamps or line inputs
  • S/PDIF digital I/O (coaxial) with 2-channel PCM
  • SCMS copy protection control
  • digital I/O supports surround-encoded AC-3 and DTS pass-through
  • 1 x 1 MIDI I/O
  • directly drive up to 7.1 surround (bass management software included)
  • software controlled 36-bit internal DSP digital mixing/routing
  • +4dbu/-10dBV operation individually switched in software
  • word clock I/O for sample accurate device synchronization
  • Apple G5 compatible - Incompatible exceptions
  • includes Ableton Live Lite 4 music production software, so you can make music right away


Specifications
Frequency Response: 22Hz-22kHz, -0.2,-0.4dB @48kHz22Hz-40kHz, -0.2,-0.7db @96kHz
Dynamic Range: 101.5dB (D/A) (A-weighted)99.6dB (A/D) (A-weighted)
THD: < 0.002% (A/D and D/A)
Size/Weight: 5-1/8" x 7/8" x 5-3/8"; 0.25 lbs.
Compatibility: ASIO 2MMESound ManagerOMSDirectXGSIF 2Mac OS X Core Audio / Core MIDI

Minimum System Requirements (PC)
Operating System: Windows 98SE / Me / 2000 (SP4) / XP (SP1)
Processor/Memory: For 96kHz operation

Minimum System Requirements (Mac)
Processor: G3/G4(*) 500MHz
Operating System/Memory: OS 9.2.2, 128MB RAM; OS X 10.1.5, 10.2.6 or greater, 256MB RAMOMS 2.3.8 for MIDI under OS 9.2.2

Note
(*): G3/G4 accelerator cards not supported; OS 10.3 required for Dolby Digital and DTS pass-through with Apple DVD PlayerCurrently there are two models of Apple's G5 that are incompatible with this product. Please click this link for more information

The Delta 1010LT delivers much of the same universal connectivity, high fidelity and seamless performance as the popular Delta 1010 on a single PCI cardand at a fraction of the price. Multiple analog I/O, MIDI, S/PDIF and surround sound support are all here. Two inputs even have mic/line preamps on XLR connectors, saving the expense of outboard preamps. Its all on a compact, half-size PCI card with two color-coded breakout cables. Combine up to four Deltas in your system for a maximum of 32 analog and four stereo S/PDIF inputs and outputs.

36-bit Embedded DSP
All Delta cards contain a 36-bit embedded DSP enabling a software-driven patchbay/router for all analog and digital I/Oall with extremely fast throughput for low-latency software monitoring. A single unified control panel provides settings for clock and sample rates, buffer sizes, individual signal levels for every input and output, adjustable +4dBu/-10dBV pad conrols and digital I/O control on up to four installed Delta cards. All controls are also easily accessible through most professional audio software applications for seamless integration and operation.

Bundled Software
Ableton Live Lite 5
Ableton Live Lite 5 delivers much of the functionality of Ableton Live 5the revolutionary, multi-award winning music production solution that allows you to spontaneously compose, record, remix, improvise and edit your musical ideas in a seamless audio/MIDI environment. Live brings your acoustic, electronic and virtual instrumentsas well as your digital audio recordings and MIDI sequencestogether in a single interface with unparalleled ease of use.
