Puget Systems C170-G

Motherboard

Puget Systems C170-G Main Picture


Puget Systems C170-G Picture 85194Puget Systems C170-G Picture 85195Puget Systems C170-G Picture 85196Puget Systems C170-G Picture 85197Puget Systems C170-G Picture 85198Puget Systems C170-G Picture 85199
The Puget Mobile 17″ workstation features high-performance hardware with the Intel Core i9 14900HX CPU and the NVIDIA GeForce RTX 4090 Mobile GPU, all built into a notebook chassis. The 17.3-inch QHD screen has a high 240Hz refresh rate and good color accuracy. That combination of top-end specs makes this a great option for content creators who need to work on the go.

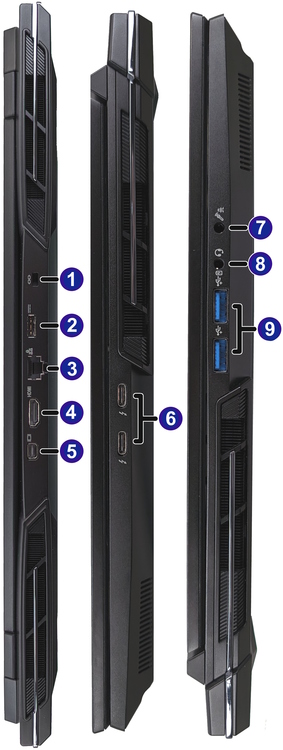

For connectivity, this laptop PC has two USB 3.2 and two Thunderbolt 4.0 ports, HDMI and Mini DisplayPort for external monitors, analog and digital audio connections, as well as 2.5Gb Ethernet, WiFi 6e, and Bluetooth 5.2 for networking. A pair of powerful cooling fans are built into the system, and they can ramp from nearly silent to quite loud depending on the workload.

Please note that running on battery will limit CPU and GPU speeds so, while this system is very portable, it must be plugged in for best performance.

Model: Puget Systems C170-G

Specifications

CPU Compatibility Intel Core i9 14900HX 2.2GHz (Up To 5.8GHz Turbo) 24 Core 15-165W
Form Factor Notebook
Chipset Manufacturer Intel
Chipset HM770
Network Connectivity 2.5G Networking + WiFi 6e
Network Controller Intel E3102, Intel AX211
Audio Controller Onboard Realtek HD Audio
Cooling System Heatsink and Fan
Number of Fans 2
Color Black
Notebook-Display
Screen Size 17.3 Inch
Native Resolution QHD (2560x1440)
Surface Matte Finish
Memory Support
Type DDR5 SODIMM
Maximum Speed 5600 MHz
Number of Slots 2
Maximum Size per Slot 48 GB
Maximum Amount Supported 96 GB
Onboard Video
Chipset Manufacturer nVidia
Processor Type NVIDIA GeForce RTX 4090 Mobile
Onboard Memory 16,384 MB
Maximum HDMI Resolution  4096x3112
Maximum DisplayPort Resolution  7680x4320
HDMI 1
HDMI Version 2.1
Mini DisplayPort 1
DisplayPort Version 1.4
Notes: 2x Thunderbolt 4, Supports 4x Total Simultaneous Outputs
External Connections
USB 3.2 Gen 2 (USB 3.1) 2
Audio Out Stereo
Audio In Line-In/Microphone
S/PDIF Optical
LAN (RJ45) 1
Memory Card Reader No
Thunderbolt Ports 2
Thunderbolt Version 4
Internal Connections
M.2 Connector 3
M.2 Support 3x 80mm PCIe 4.0
Additional Information
Built-in Webcam Yes
Built-in Microphone Yes
Bluetooth Yes (5.2)
BIOS Features
UEFI BIOS Yes
Dimensions
Height 25 mm (1.0 in)
Width 396 mm (15.6 in)
Depth 278 mm (10.9 in)
Net Weight 3.29 kg (7.3 lbs)
Power Supply
Input Voltage 100-240 Vac
Wattage at 120V 330 W
AC Adapter Output
DC Voltage 19.5 V
Amperage 16.92 A

Additional Specs


  • Aluminum Chassis
  • Multi Color Backlight Keyboard
  • Large Glass Touchpad
  • 2M FHD Hello Camera
  • Firmware TPM
  • Removable Wi-Fi / BT
  • 17.3-inch 2K Display
    • 100% sRGB, 100% DCI-P3, 89% AdobeRGB, 87% NTSC
    • 350-nits
    • 240hz
    • IPS
    • G-Sync
    • Wide View Angle
    • Matte Finished

  • 6 Cell Lithium-Polymer Battery 99Wh (6780mAh @ ~14.6V)
  • 330W AC ADAPTER
    • Dimensions: 1.5 x 3.5 x 7 inches
    • Weight: 1.14kg / 2.51 lbs
