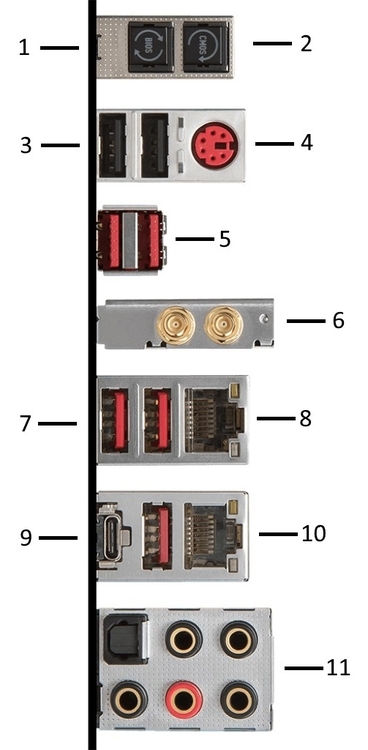

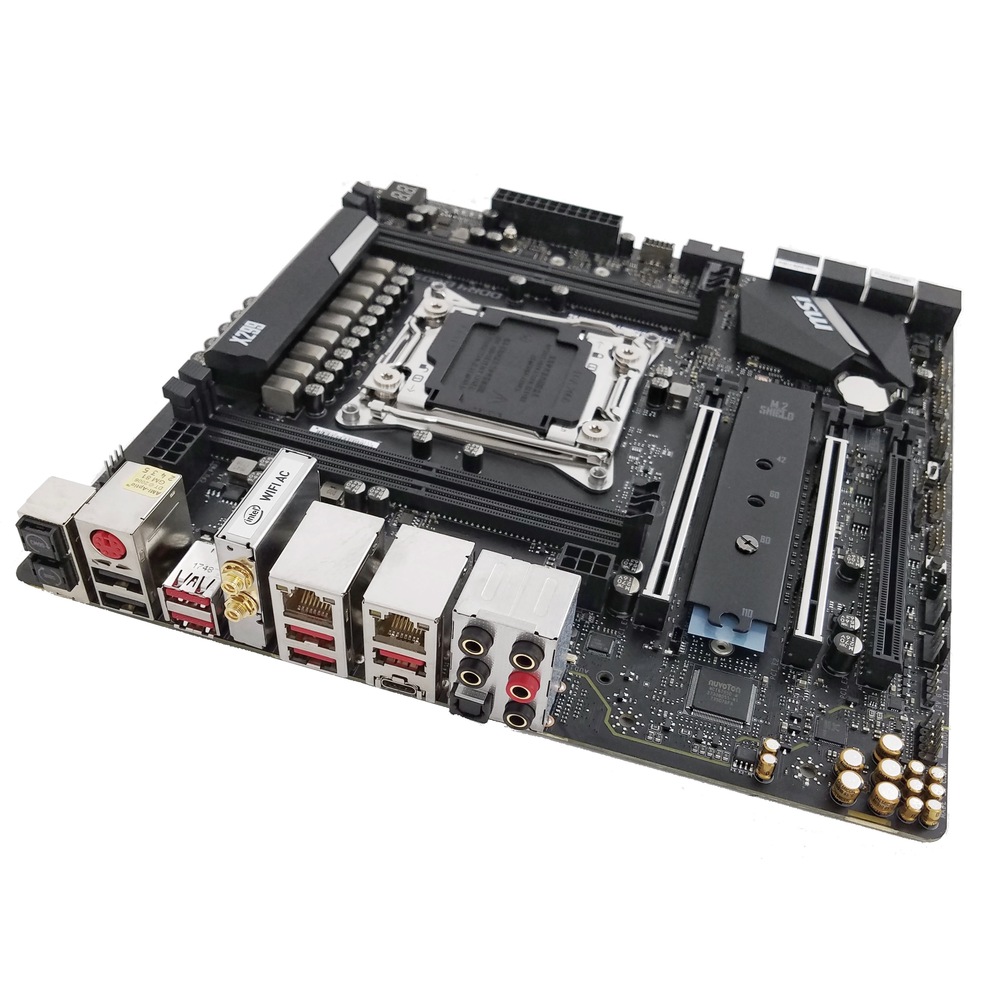

MSI X299M Pro Carbon AC Ports
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

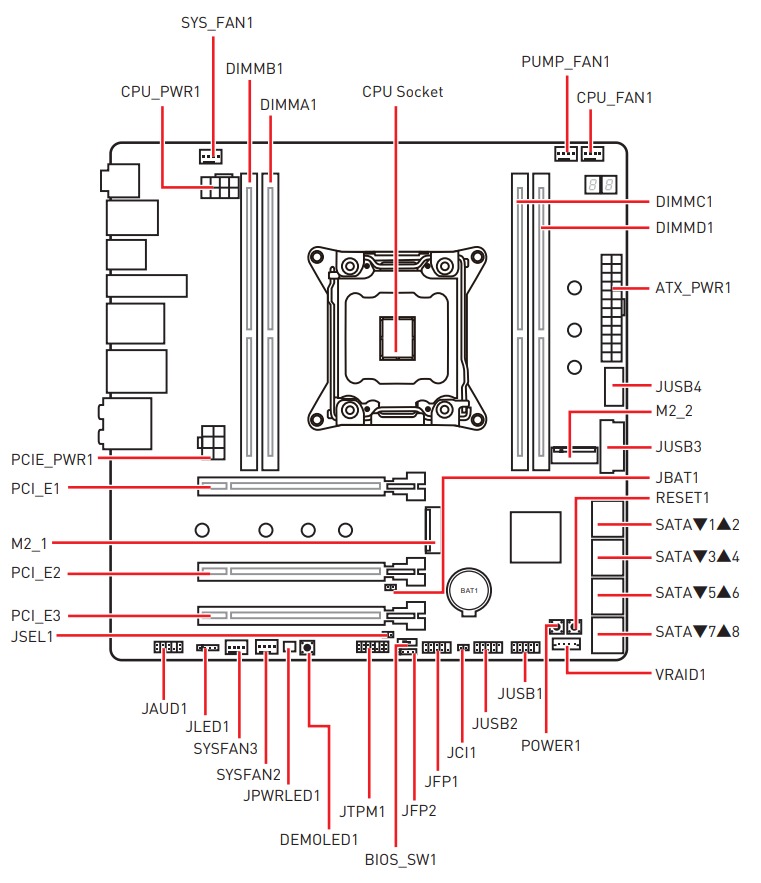

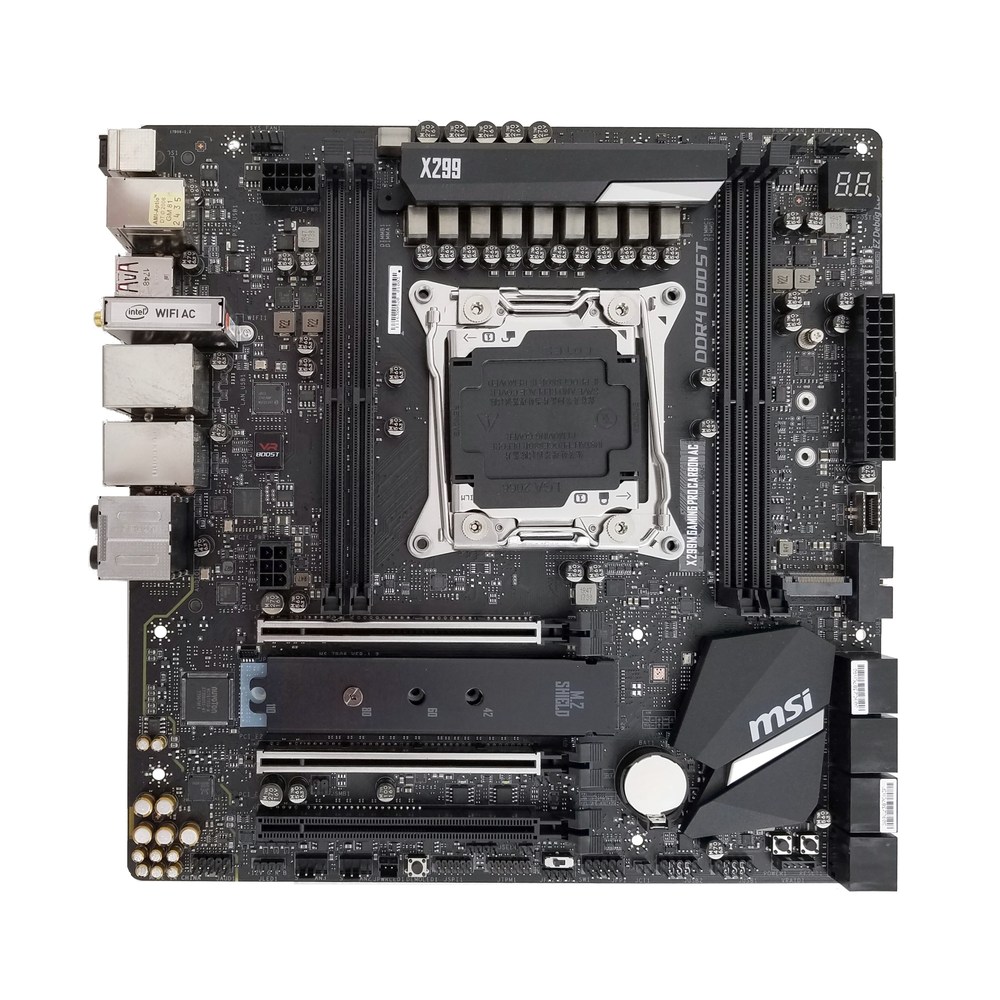

MSI X299M Pro Carbon AC Schematic

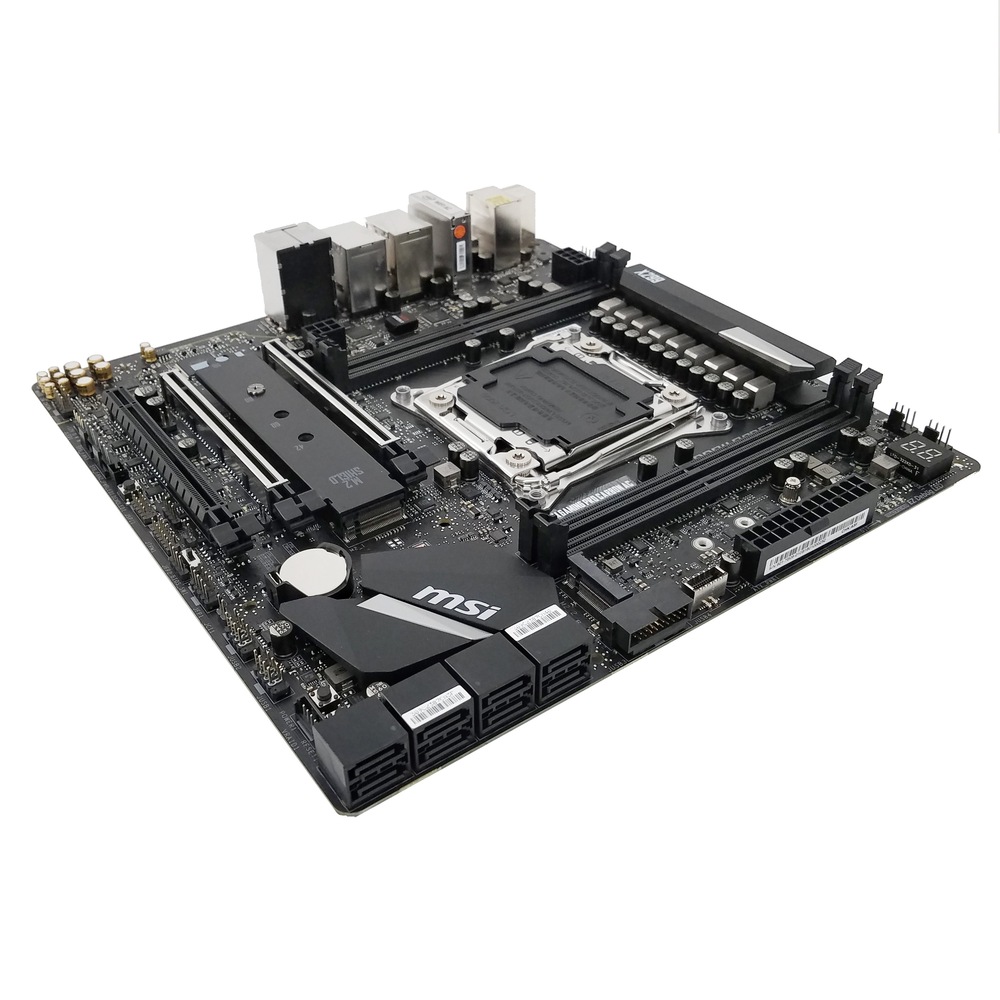

For external connectivity it provides two USB 2.0, four USB 3.0, and two USB 3.1 ports - with one of those being a Type C port for the latest peripherals. Digital and analog audio are included too, along with dual Gb Ethernet and 802.11ac WiFi. Internally there are eight SATA 6Gbps ports and two M.2 slot for drives - as well as USB headers for front panel ports / devices. Three PCI-Express 3.0 x16 size slots are present, with two running at x16 speed and one at x8 (or x16, x8, and x4 on CPUs with fewer PCI-E lanes).
Please note that the PCI-Express slot speeds depend on the processor installed. Lower-end chips have fewer PCI-E lanes, so if you plan on using a lot of expansion cards please check with our consultants to make sure you get a CPU that will support everything you need.
Model: MSI X299M GAMING PRO CARBON AC
Specifications
| Socket | 2066 |
| CPU Compatibility | SkyLake-X |
| Form Factor | MicroATX |
| Chipset Manufacturer | Intel |
| Chipset | X299 |
| Network Connectivity | Dual Gigabit Networking + 802.11 A/B/G/N/AC |
| Network Controller | Intel I219-V / Intel I211AT |
| Audio Controller | Onboard Realtek ALC1220 HD Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR4 |
| Maximum Speed | 2666 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 16 GB |
| Maximum Amount Supported | 64 GB |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 (USB 3.1) | 1 |
| USB 3.2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 1 Type C | 1 |
| SATA III 6.0Gbps | 8 |
| M.2 Connector | 2 |
| M.2 Support | 1x 42/60/80mm, 1x 42/60/80/110mm |
| TPM (module sold separately) | 1 |
| Compatible TPM | 14-1 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
| Slot 2 | Slot not available on this board |
| Slot 3 | PCI Express 3.0 x16 |
| Slot 4 | PCI Express 3.0 x8 in a x16 size |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0/1/5/10 |
| Bluetooth | Yes |
| Dual GPU Slot Spacing | 2-Slot |
| Integrated IO Shield | No |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
