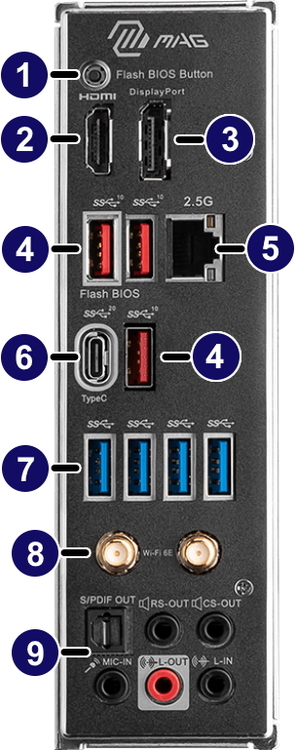

MSI MAG B650M MORTAR WIFI Ports
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
HDMI 2.0b Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160). Also supports HDR.
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
USB 3.2 Gen 2x2 Type C: Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 Type C devices (20 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
MSI MAG B650M MORTAR WIFI Schematic
For external connectivity, this board has 7.1 surround analog and digital audio outputs, 2.5Gb Ethernet, WiFi 6, Bluetooth 5.2, and eight USB ports of varying speeds (including one Type C). There are also HDMI and DisplayPort outputs for use with the graphics built into AMD's Ryzen processors, though most users will want to add a dedicated video card for improved performance.
Model: MSI MAG 650M MORTAR WIFI
Specifications
| Socket | AM5 |
| CPU Compatibility | AMD Ryzen 7000 Series Desktop Processors |
| Form Factor | MicroATX |
| Chipset Manufacturer | AMD |
| Chipset | B650 |
| Network Connectivity | 2.5G Networking + WiFi 6 |
| Audio Controller | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Color | Black |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 5200 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 128 GB |
Onboard Video | |
| Chipset Manufacturer | AMD |
| Processor Type | RDNA2 |
| Maximum Resolution | 7,680 x 4,320 |
| HDMI | 1 |
| HDMI Version | 2.1 |
| DisplayPort | 1 |
| DisplayPort Version | 1.4 |
| Notes: | HDMI supports a max of 4k 60hz |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 (USB 3.1) | 2 |
| USB 3.2 Type C | 3 |
| USB 3.2 Gen 2x2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 1 Type C | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 2 |
| M.2 Support | 2x 60-80mm (PCIe 4.0) |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 6x via AMD B650 Chipset |
Expansion Slots | |
| Slot 1 | PCI Express 4.0 x16 |
| Slot 2 | PCI Express 3.0 x1 |
| Slot 3 | PCI Express 4.0 x4 in a x16 size |
Additional Information | |
| RAID Support | NVMe RAID 0/1/10 and SATA RAID 0/1/10 via RAIDXpert2 |
| Bluetooth | Yes (5.2) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.434 kg (3.2 lbs) |
