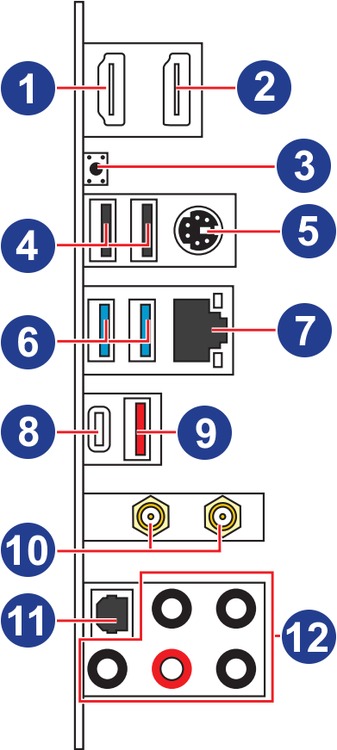

MSI MAG B550M MORTAR WIFI Ports
HDMI 2.0a Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160) at 60hz.
DisplayPort 1.2 Out Port: Outputs digital video and audio at up to 5K (5120x2880) @ 30Hz or 3840x2160 @ 75Hz.
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
MSI MAG B550M MORTAR WIFI Schematic
For external connectivity, it also has both analog and digital audio outputs, 2.5Gb Ethernet, WiFi 6, Bluetooth, six USB ports of varying speeds (including one Type C), and even a legacy PS/2 port.
A couple of oddities about this board are worth noting, but shouldn't impact most users:
- The HDMI and DisplayPort connections on this motherboard are for CPUs with built-in graphics, but the higher-end Ryzen chips we carry don't support that feature (since almost everyone uses a dedicated video card)
- If a second M.2 drive is installed, it will disable the bottom PCI-Express x4 slot
- The onboard NIC does not support Linux, so users of that OS will want to have a dedicated network card added
Note: This board has one Gen4 M.2 slot and one Gen3 M.2 slot for NVMe SSDs. Putting a Gen4 M.2 drive in the Gen3 slot will result in Gen3 speed. Also, populating both M.2 slots will disable the bottom PCIe slot. Please talk to a consultant if you have additional questions.
Model: MSI B550MMORWIFI
Specifications
| Socket | AM4 |
| CPU Compatibility | AMD Ryzen |
| Form Factor | MicroATX |
| Chipset Manufacturer | AMD |
| Chipset | B550 |
| Network Connectivity | 2.5G Networking + WiFi 6 |
| Network Controller | Realtek RTL8125B + Intel AX200 |
| Audio Controller | Onboard Realtek ALC S1200A HD Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR4 ECC |
| Maximum Speed | 3200 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 128 GB |
Onboard Video | |
| Chipset Manufacturer | AMD |
| HDMI | 1 |
| HDMI Version | 2.1 |
| DisplayPort | 1 |
| DisplayPort Version | 1.2 |
| Notes: | Onboard Graphics Requires Supported CPU |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| USB 3.2 Gen 2 (USB 3.1) | 1 |
| USB 3.2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 1 Type C | 1 |
| SATA III 6.0Gbps | 6 |
| M.2 Connector | 2 |
| M.2 Support | x1 42-80mm NVMe (Gen4) + SATA, x1 42-80mm NVMe (Gen3) |
| TPM (module sold separately) | 1 |
| Compatible TPM | MSI 604-4462-010 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | AMD B550 |
Expansion Slots | |
| Slot 1 | PCI Express 4.0 x16 |
| Slot 2 | PCI Express 3.0 x1 |
| Slot 3 | PCI Express 3.0 x1 |
| Slot 4 | PCI Express 3.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,10 |
| Bluetooth | Yes (5.0) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 0.982 kg (2.2 lbs) |
