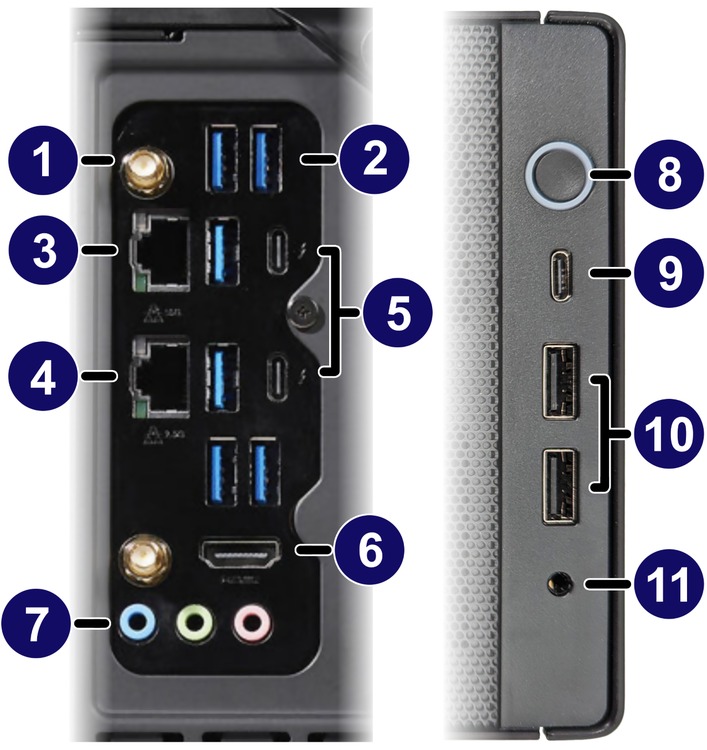

Intel NUC 13 Extreme (NUC13RNGi9) Ports
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
10G LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
Thunderbolt 4 Port: Thunderbolt 4 port capable of up to 40Gbps. Also compatible with USB devices.
HDMI 2.1: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
Power Switch: On/off button for the device.
USB 3.2 Gen 2x2 Type C: Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 Type C devices (20 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Combo 3.5mm Audio Jack: Audio Jack that supports 3.5mm headphones/microphones.
Intel NUC 13 Extreme (NUC13RNGi9) Schematic
Internally, this NUC uses the top-end Intel Core i9 13900K processor and supports one PCIe x16 video card, three M.2 NVMe SSDs, and up to 64GB of DDR5 memory. External ports on the rear include one HDMI 2.1 (for use with the on-chip Intel graphics), two Thunderbolt 4, six USB 3.2, and both 2.5 & 10Gb Ethernet. On the top front edge there are three more USB ports, including one Type C, and a headphone / speaker jack. WiFi 6E and Bluetooth 5.2 are also present for wireless connectivity.
Model: Intel PNUC13RNGi9000
Specifications
| Socket | 1700 |
| CPU Compatibility | Intel Core i9 13900K 3.0GHz (Up To 5.8GHz Turbo) 24 Core 125W |
| Form Factor | Small Form Factor |
| Chipset Manufacturer | Intel |
| Chipset | Z690 |
| Network Connectivity | 10G + 2.5G Networking + WiFi 6e |
| Network Controller | AQC113, i226-V, AX1690i |
| Audio Controller | Onboard Realtek HD Audio |
| Cooling System | Heatsink and Fan |
| Number of Fans | 3 |
| Color | Black |
Memory Support | |
| Type | DDR5 SODIMM |
| Maximum Speed | 5600 MHz |
| Number of Slots | 2 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 64 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | UHD Graphics 770 |
| Maximum Resolution | 7680 x 4320 at 60Hz |
| Maximum HDMI Resolution | 4096x2160 |
| HDMI | 1 |
| HDMI Version | 2.1 |
| Notes: | 2x Thunderbolt 4 Outputs |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| USB 3.2 Gen 2 (USB 3.1) | 6 |
| USB 3.2 Gen 2x2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 2 |
| Wireless Antenna Port | Yes |
| Thunderbolt Ports | 2 |
| Thunderbolt Version | 4 |
Internal Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| SATA III 6.0Gbps | 2 |
| M.2 Connector | 3 |
| M.2 Support | 3x 80mm (PCIe Gen4) |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | Intel Z690 |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0/1/5/10 |
| Bluetooth | Yes (5.2) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | No |
Dimensions | |
| Height | 318 mm (12.5 in) |
| Width | 129 mm (5.1 in) |
| Depth | 337 mm (13.3 in) |
| Net Weight | 7.378 kg (16.3 lbs) |
