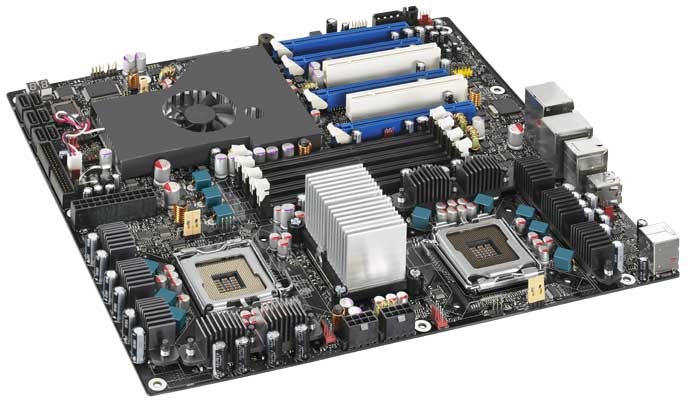

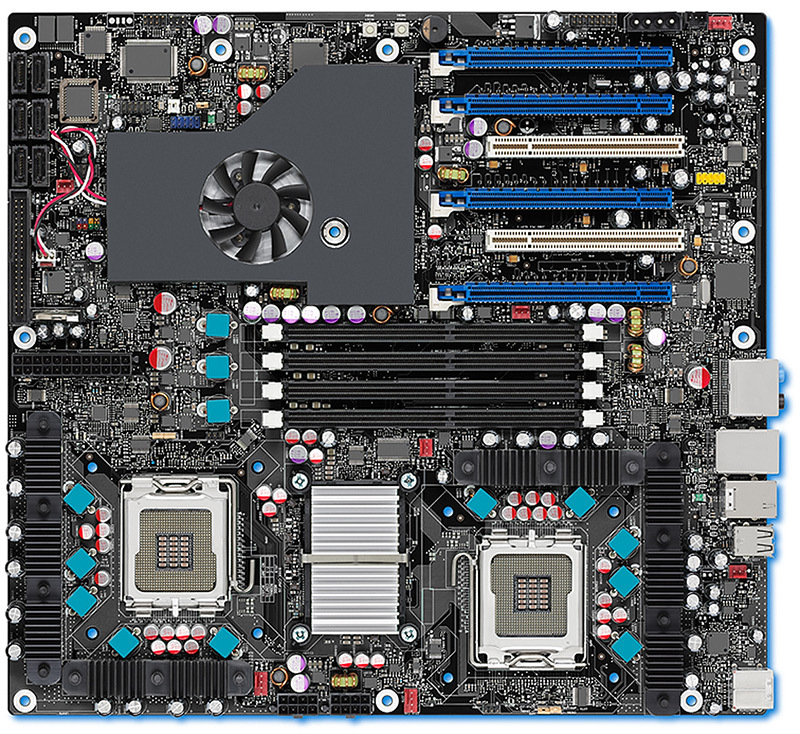

Model: Intel BOXD5400XS
Specifications
| Socket | 771 |
| CPU Compatibility | 45nm Core 2 Extreme or Xeon processors |
| Form Factor | EATX |
| Chipset Manufacturer | Intel |
| Chipset | 5400 Express |
| Front Side Bus | 1600Mhz |
| Wired Network Connectivity | Gigabit Networking |
| Cooling System | Heatsink and Fan |
| Number of Fans | 1 |
| Color | Black |
Memory Support | |
| Type | DDR2 FB-DIMM |
| Maximum Speed | 800 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 4 GB |
| Maximum Amount Supported | 8 GB |
External Connections | |
| USB 2.0 | 6 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| External SATA | 2 |
| LAN (RJ45) | 1 |
| Firewire | 1 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| Firewire | 1 |
| IDE | 2 Devices |
Expansion Slots | |
| Slot 1 | PCI Express x16 |
| Slot 2 | PCI |
| Slot 3 | PCI Express x16 |
| Slot 4 | PCI |
| Slot 5 | PCI Express x16 |
| Slot 6 | PCI Express x16 |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
Dimensions | |
| Height | 330.2 mm (13.0 in) |
| Width | 304.8 mm (12.0 in) |
Internal Connections
SATA2: 4
