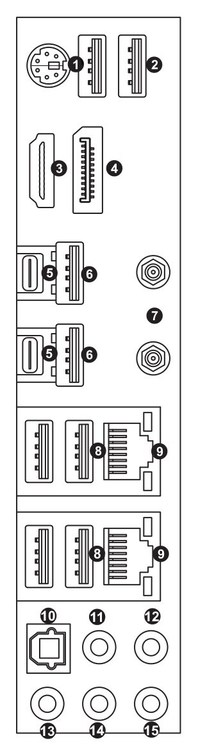

Gigabyte Z390 Designare Ports
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
HDMI 1.4b Out Port: Provides digital video and audio output up to 4K resolution and supports 3D 1080P content.
Displayport Input for USB C: Connect a DisplayPort cable from your video card to passthrough to the USB-C / TB port.
Thunderbolt 3 Port: Thunderbolt 3 high speed data port. Also supports USB 3.1 or DisplayPort video output with adapter.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Rear Speakers: 3.5mm analog audio jack for output to rear speakers (if using surround sound).
Center / Subwoofer Audio Jack: 3.5mm analog audio jack for output to center speaker and subwoofer (if using surround sound).
Microphone Audio Jack: 3.5mm analog audio jack for microphone input to the computer.
Front Speakers: 3.5mm analog audio jack for output to speakers (front, if using surround sound) or headphones.
Line In Audio Jack: 3.5mm analog audio jack for line-level input to the computer.
Gigabyte Z390 Designare Schematic
In terms of connectivity, this board is well rounded. It has HDMI 1.4 video output for use with the Intel graphics built into the CPU - a great backup option, in case the dedicated video card in a system isn't working. For memory it has four DDR4 slots, allowing up to 128GB of 2666MHz RAM. Drive connectivity includes six SATA III ports plus two M.2 slots, though use of the M.2 slots prevents using some of the SATA ports. It also has both analog and digital audio outputs, gigabit Ethernet, WiFi, Bluetooth, two USB 2.0 ports, four USB 3.0 ports, and two 3.1 ports. Two Thunderbolt 3 ports are also present, using Type C connectors which can double as additional USB 3.1 ports. For expansion cards, there are five total PCI-Express slots in varying sizes. SLI and Crossfire are supported as well, though when two video cards are installed the PCI-E slots they are in run at x8 speed rather than x16.
Note: When the bottom M.2 slot is populated, it will disable SATA port 0. When the top M.2 slot is populated, it will disable SATA ports 4-5.
Model: Gigabyte Z390 DESIGNARE (rev. 1.0)
Specifications
| Socket | 1151 |
| CPU Compatibility | Intel Socket 1151 for 9th Generation Core Processors |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | Z390 |
| Front Side Bus | DMI 3.0 |
| Network Connectivity | Dual Gigabit Networking + 802.11 A/B/G/N/AC |
| Network Controller | Intel |
| Audio Controller | Onboard Realtek ALC1220-VB HD Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR4 |
| Maximum Speed | 2666 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 128 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Integrated Graphics |
| Maximum Shared Memory | 1024 MB |
| Maximum HDMI Resolution | 4096x2160 |
| HDMI | 1 |
| HDMI Version | 1.4b |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 (USB 3.1) | 2 |
| PS/2 Keyboard | No |
| PS/2 Mouse | No |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
| Wireless Antenna Port | Yes |
| Thunderbolt Ports | 2 |
| Thunderbolt Version | 3 |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 1 Type C | 1 |
| SATA III 6.0Gbps | 6 |
| M.2 Connector | 2 |
| M.2 Support | x2 42-110mm NVMe + SATA |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 6 port - Intel Z390 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
| Slot 2 | PCI Express 3.0 x1 |
| Slot 3 | Slot not available on this board |
| Slot 4 | PCI Express 3.0 x8 in a x16 size |
| Slot 5 | Slot not available on this board |
| Slot 6 | PCI Express 3.0 x1 |
| Slot 7 | PCI Express 3.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,5,10 |
| Bluetooth | Yes (5.0) |
| Dual GPU Slot Spacing | 3-Slot |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
