Gigabyte Z370 AORUS 5 Ports

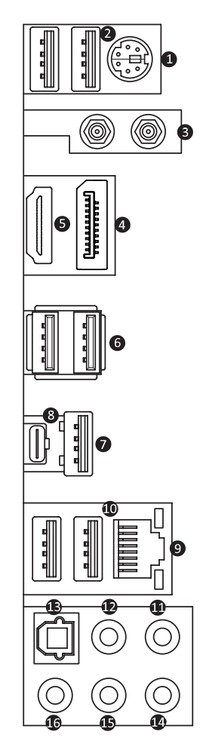

PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
HDMI 1.4b Out Port: Provides digital video and audio output up to 4K resolution and supports 3D 1080P content.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Center / Subwoofer Audio Jack: 3.5mm analog audio jack for output to center speaker and subwoofer (if using surround sound).
Rear Speakers: 3.5mm analog audio jack for output to rear speakers (if using surround sound).
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Line In Audio Jack: 3.5mm analog audio jack for line-level input to the computer.
Front Speakers: 3.5mm analog audio jack for output to speakers (front, if using surround sound) or headphones.
Microphone Audio Jack: 3.5mm analog audio jack for microphone input to the computer.

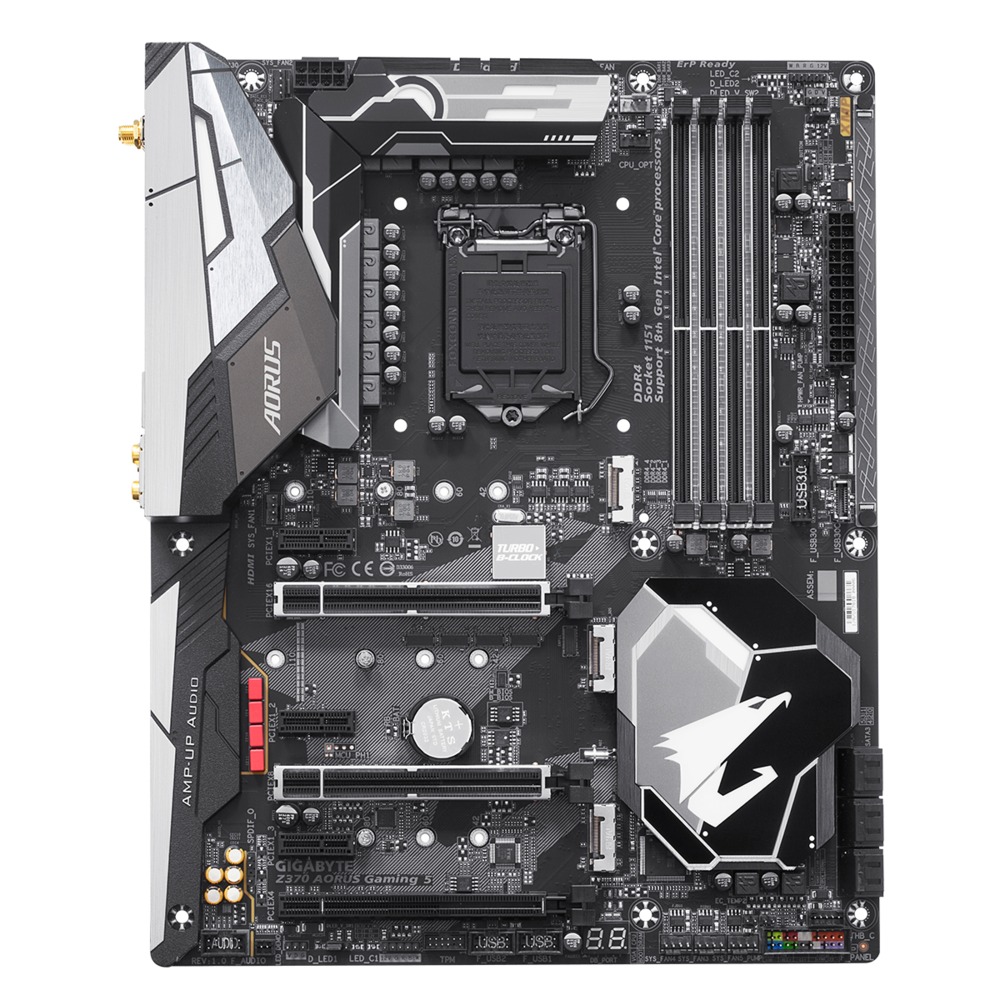

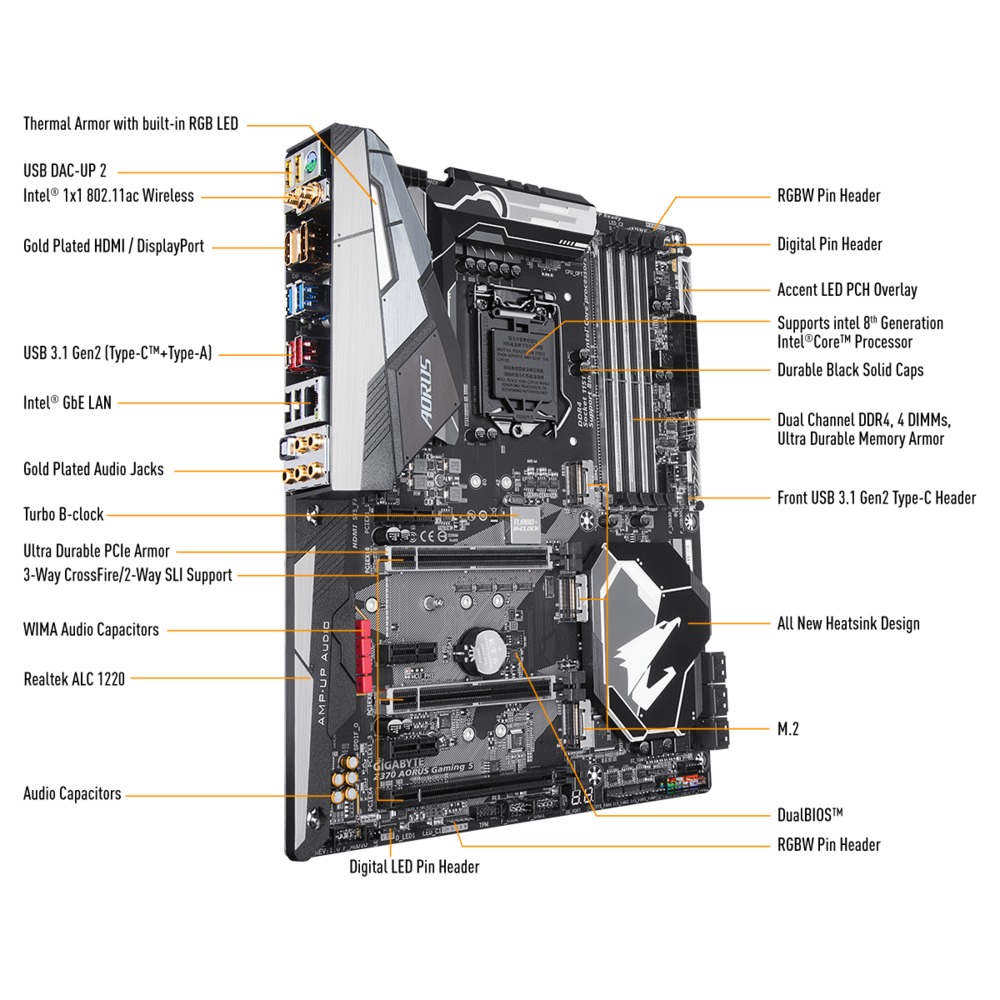

Gigabyte Z370 AORUS 5 Schematic

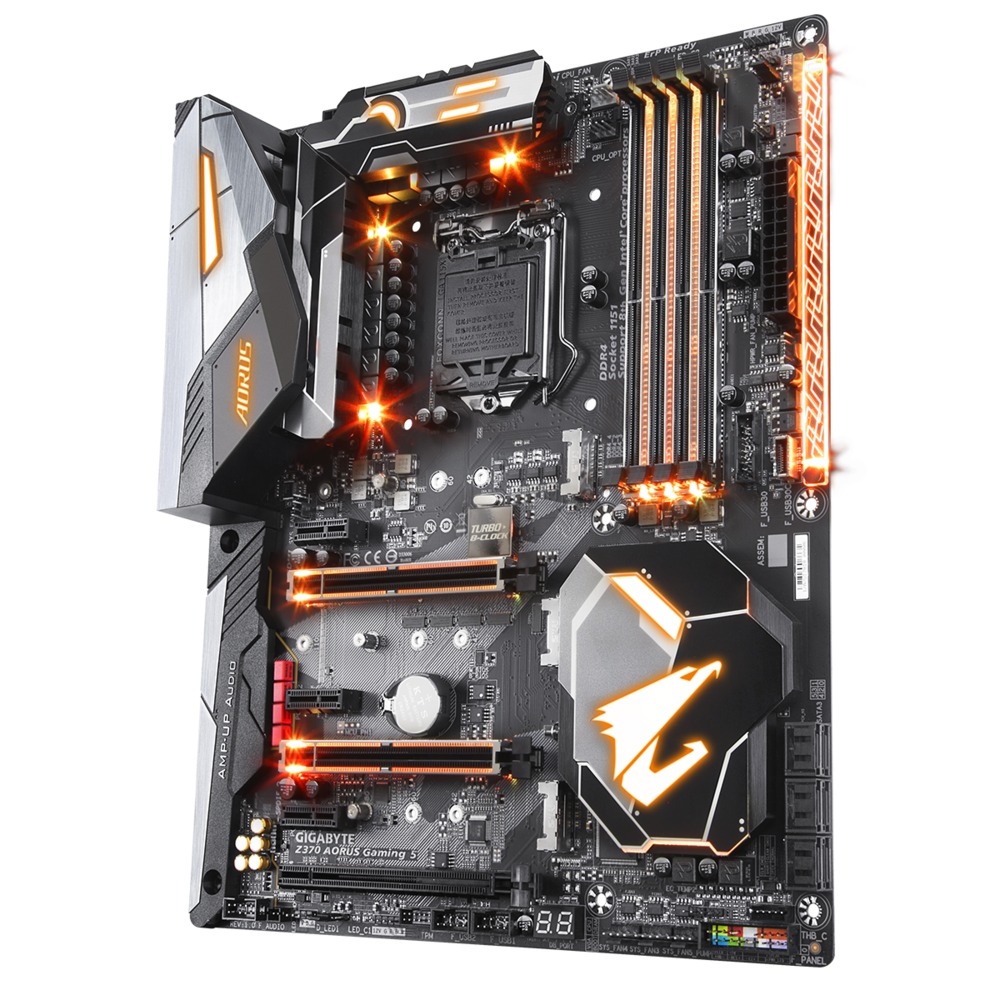

In terms of connectivity, this board is very well rounded. It has both HDMI and DisplayPort video outputs - allowing dual monitor usage without a dedicated video card. For memory it has four DDR4 slots, allowing up to 64GB of 2666MHz RAM. Drive connectivity includes several SATA III ports plus three M.2 slots. It also has both analog and digital audio outputs, gigabit Ethernet, WiFi, Bluetooth, two USB 2.0 ports, four USB 3.0 ports, two 3.1 ports (including one Type C), and even a legacy PS/2 port. In terms of expansion card support, there are six total PCI-Express slots in varying sizes. SLI and Crossfire are supported as well, though when two video cards are installed the PCI-E slots they are in run at x8 speed rather than x16.

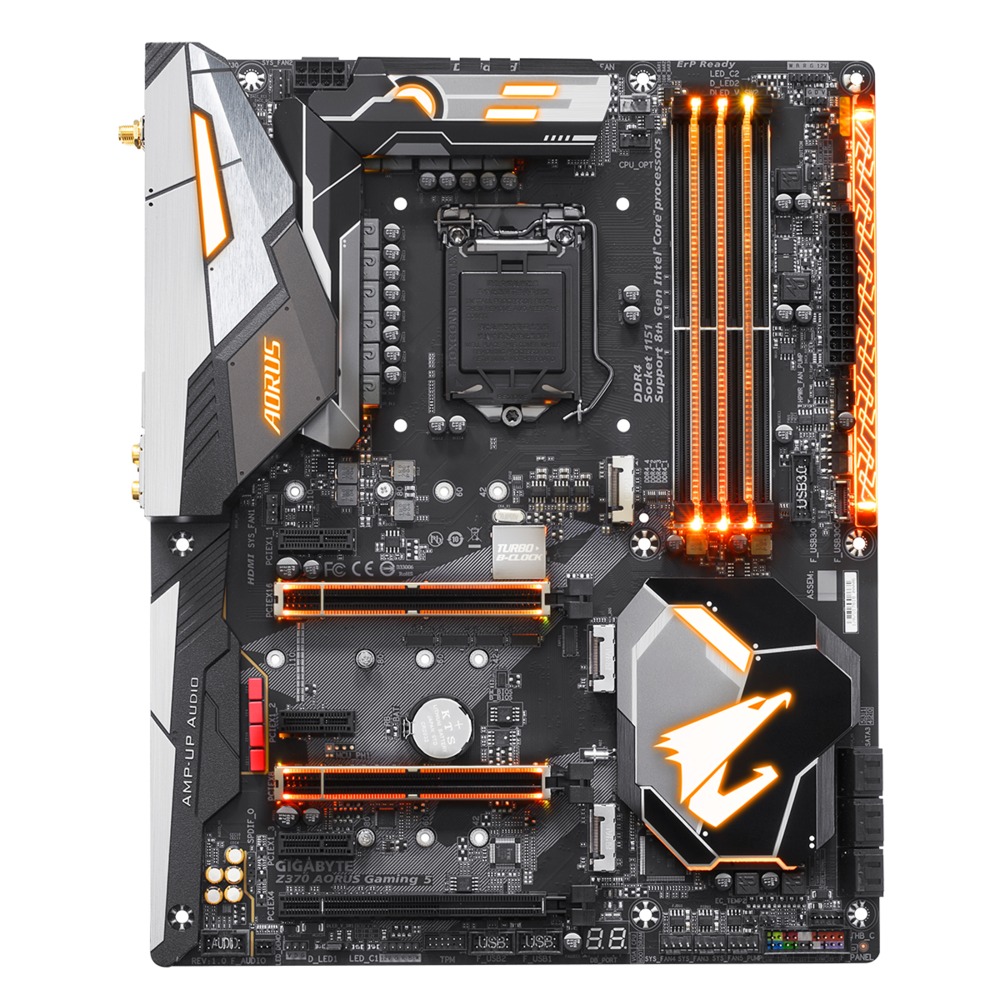

This is a pretty straight forward board. Easy to build with, fan headers are placed in easily accessible locations and the USB 3.0 port up by the 24-pin power connector makes wiring a bit neater. The shroud over the I/O ports is a little big for my tastes but that's really the only negative. I especially like that the first x16 slot is a little lower, which means your hot GPU is further away from your very hot CPU allowing for some better cooling. Also, it's kinda fun to play with the built in RGB LEDs even though we ship our systems with them off by default.
Model: Gigabyte Z370 AORUS GAMING 5
Specifications
| Socket | 1151 |
| CPU Compatibility | Intel Socket 1151 for 8th Generation Core Processors |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | Z370 |
| Front Side Bus | DMI 3.0 |
| Network Connectivity | Gigabit Networking + 802.11 A/B/G/N/AC |
| Network Controller | Intel |
| Audio Controller | Onboard Realtek ALC1220 7.1 Channel HD Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR4 |
| Maximum Speed | 2666 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 16 GB |
| Maximum Amount Supported | 64 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Integrated Graphics |
| Maximum Shared Memory | 512 MB |
| Maximum HDMI Resolution | 4096x2160 |
| Maximum DisplayPort Resolution | 4096x2160 |
| HDMI | 1 |
| HDMI Version | 1.4b |
| DisplayPort | 1 |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 (USB 3.1) | 1 |
| USB 3.2 Type C | 1 |
| PS/2 Keyboard | Yes |
| PS/2 Mouse | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 1 Type C | 1 |
| SATA III 6.0Gbps | 6 |
| M.2 Connector | 3 |
| M.2 Support | PCIe & SATA, type 2242/2260/2280/22110 devices |
| TPM (module sold separately) | 1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 6 port - Intel Z370 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x1 |
| Slot 2 | PCI Express 3.0 x16 |
| Slot 3 | Slot not available on this board |
| Slot 4 | PCI Express 3.0 x1 |
| Slot 5 | PCI Express 3.0 x8 in a x16 size |
| Slot 6 | PCI Express 3.0 x1 |
| Slot 7 | PCI Express 3.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,5,10 |
| Bluetooth | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
