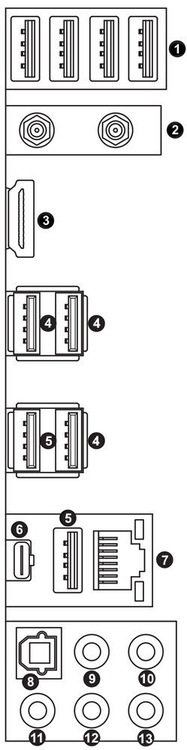

Gigabyte X570 AORUS Ultra Ports
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
HDMI 2.0b Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160). Also supports HDR.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Rear Speakers: 3.5mm analog audio jack for output to rear speakers (if using surround sound).
Center / Subwoofer Audio Jack: 3.5mm analog audio jack for output to center speaker and subwoofer (if using surround sound).
Microphone Audio Jack: 3.5mm analog audio jack for microphone input to the computer.
Front Speakers: 3.5mm analog audio jack for output to speakers (front, if using surround sound) or headphones.
Line In Audio Jack: 3.5mm analog audio jack for line-level input to the computer.
Gigabyte X570 AORUS Ultra Schematic
In terms of connectivity, this board is well equipped with ten USB ports (one of which is a Type C), wired and wireless networking, and both digital and analog audio outputs. It also has an HDMI connection, but that only functions when a CPU with integrated graphics is used - and we don't offer those in our systems here at Puget, as that feature is limited to the lowest-end processors in AMD's line.
Internally this motherboard has four DDR4 memory slots, supporting up to 128GB of RAM, and six SATA III ports plus three M.2 slots for connecting drives. Five PCI-Express 4.0 slots of various sizes are available to handle a wide range of expansion cards.
Model: Gigabyte X570 AORUS ULTRA (rev. 1.2)
Specifications
| Socket | AM4 |
| CPU Compatibility | AMD Ryzen |
| Form Factor | ATX |
| Chipset Manufacturer | AMD |
| Chipset | X570 |
| Network Connectivity | Gigabit Networking + WiFi 6 |
| Network Controller | Intel I211-AT + Intel AX200 |
| Audio Controller | Onboard Realtek ALC1220-VB HD Audio |
| Cooling System | Heatsink and Fan |
| Number of Fans | 1 |
| Color | Black |
Memory Support | |
| Type | DDR4 ECC |
| Maximum Speed | 3200 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 128 GB |
Onboard Video | |
| Chipset Manufacturer | AMD |
| Maximum HDMI Resolution | 4096x2160 |
| HDMI | 1 |
| HDMI Version | 2.0 |
| Notes: | Onboard Graphics Requires Supported CPU |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 3 |
| USB 3.2 Gen 2 (USB 3.1) | 2 |
| USB 3.2 Gen 2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| USB 3.2 Gen 2 Type C | 1 |
| SATA III 6.0Gbps | 6 |
| M.2 Connector | 3 |
| M.2 Support | x1 42-80mm NVMe (Gen4) + SATA, x2 42-110mm NVMe (Gen4) + SATA |
| TPM (module sold separately) | 1 |
| Compatible TPM | Gigabyte GC-TPM2.0_S 2.0 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | AMD X570 |
Expansion Slots | |
| Slot 1 | Slot not available on this board |
| Slot 2 | PCI Express 4.0 x16 |
| Slot 3 | PCI Express 4.0 x1 |
| Slot 4 | Slot not available on this board |
| Slot 5 | PCI Express 4.0 x8 in a x16 size |
| Slot 6 | PCI Express 4.0 x1 |
| Slot 7 | PCI Express 4.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,10 |
| Bluetooth | Yes (5.0) |
| Dual GPU Slot Spacing | 3-Slot |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.240 kg (2.7 lbs) |
