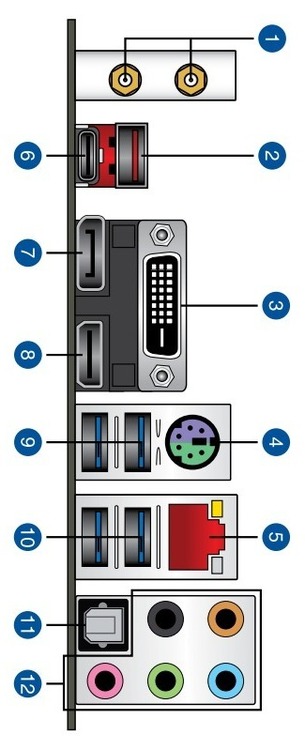

Asus STRIX Z270E Ports
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
DVI (Single Link): Digital Video Interface (DVI) port for outputting digital video. Supports up to 1920x1200.
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
DisplayPort 1.2 Out Port: Outputs digital video and audio at up to 5K (5120x2880) @ 30Hz or 3840x2160 @ 75Hz.
HDMI Out Port: High Definition Multimedia Interface (HDMI) port for outputting digital video and audio.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

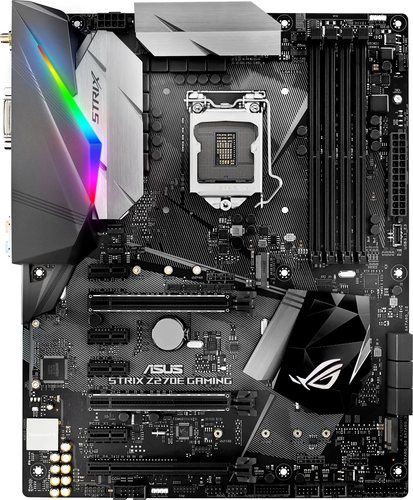

Asus STRIX Z270E Schematic
In terms of connectivity, this board is very well rounded. It has a wide range of video outputs, with DVI, HDMI and DisplayPort all present. For memory it has four DDR4 slots, allowing up to 64GB of RAM. Drive connectivity includes SATA III, SATA Express, and two M.2 slots. It also has both analog and digital audio outputs, Gigabit Ethernet, WiFi / Bluetooth, a mix of USB 3.0 and 3.1 ports, and even a legacy PS/2 port. In terms of expansion card support, there are seven total PCI-Express slots in varying sizes. SLI and Crossfire are supported as well, though when two video cards are installed the PCI-E slots they are in run at x8 speed rather than x16.
This is a great motherboard for the Z270 platform - with all three digital video output standards, if you want to use the built-in graphics capabilities. Since you can use all three of those outputs at a time, this is also a great platform for running two or three monitors without needing a dedicated video card! Of course it works great with one or two video cards as well :) It also still has a legacy PS2 port for older keyboards or mice, and support for the latest connectivity like M.2 drives and USB 3.1 devices.
This motherboard can support up to (3) monitors with its single-link DVI-D, which supports up to 1920x1200 @ 60Hz resolution max, HDMI 1.4b, which can carry a 3D 1080p video signal at 120 Hz, and support up to 4096x2160 resolution at 24 Hz / 2560 x 1600 @ 60 Hz, and DisplayPort 1.2, which can support 4096 x 2304 @ 24 Hz / 3840x2160 resolution at 60 Hz.
This motherboard comes with (1) USB 3.1 Type A (rectangle USB shape), and (1) USB 3.1 Type C (new smaller unidirectional) connection available in the back of your system. USB 3.1 Type C is how they should have made USB ports in the first place. They will work regardless of the direction you plug them into the port, unlike how Type A needs to be put in a certain direction to fit and operate properly. This board also comes with (4) USB 3.0 ports, (1) PS/2 hybrid port, (1) Gigabit Ethernet RJ-45 port, 8-channel 1/8th plug ports, with (1) Optical S/PDIF output, and includes mounting spots for (2) M.2 drives, Wireless 802.11AC, & Bluetooth 4.1.
Model: Asus STRIX Z270E
Specifications
| Socket | 1151 |
| CPU Compatibility | Intel Socket 1151 for 7th Generation Processors |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | Z270 |
| Front Side Bus | DMI 3.0 |
| Network Connectivity | Gigabit Networking + 802.11 A/B/G/N/AC |
| Network Controller | Intel |
| Audio Controller | Onboard Realtek ALC892 7.1 Channel HD Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR4 |
| Maximum Speed | 2400 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 16 GB |
| Maximum Amount Supported | 64 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Integrated Graphics |
| Maximum Shared Memory | 512 MB |
| Maximum DVI Resolution | 1920x1200 |
| Maximum HDMI Resolution | 4096x2160 |
| DVI | 1 |
| HDMI | 1 |
| HDMI Version | 1.4b |
| DisplayPort | 1 |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 (USB 3.1) | 1 |
| USB 3.2 Type C | 1 |
| PS/2 Keyboard | Yes |
| PS/2 Mouse | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 3 (providing 6 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 6 |
| M.2 Connector | 2 |
| M.2 Support | Socket 3 for M Key, type 2242/2260/2280/22110 devices |
| TPM (module sold separately) | 1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 6 port - Intel Z270 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x1 |
| Slot 2 | PCI Express 3.0 x16 |
| Slot 3 | PCI Express 3.0 x1 |
| Slot 4 | PCI Express 3.0 x1 |
| Slot 5 | PCI Express 3.0 x8 in a x16 size |
| Slot 6 | PCI Express 3.0 x1 |
| Slot 7 | PCI Express 3.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,5,10 |
| Bluetooth | Yes |
| Dual GPU Slot Spacing | 3-Slot |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
