Asus ROG STRIX Z690-G WIFI Ports

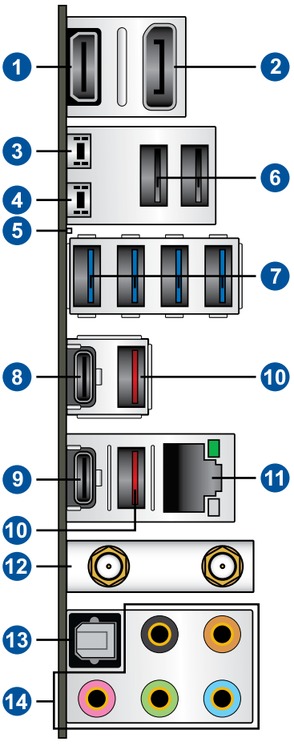

HDMI 2.0b Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160). Also supports HDR.
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
BIOS Flashback LED: Status LED for the motherboard BIOS Flashback feature
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
USB 3.2 Gen 2x2 Type C: Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 Type C devices (20 Gb/s).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

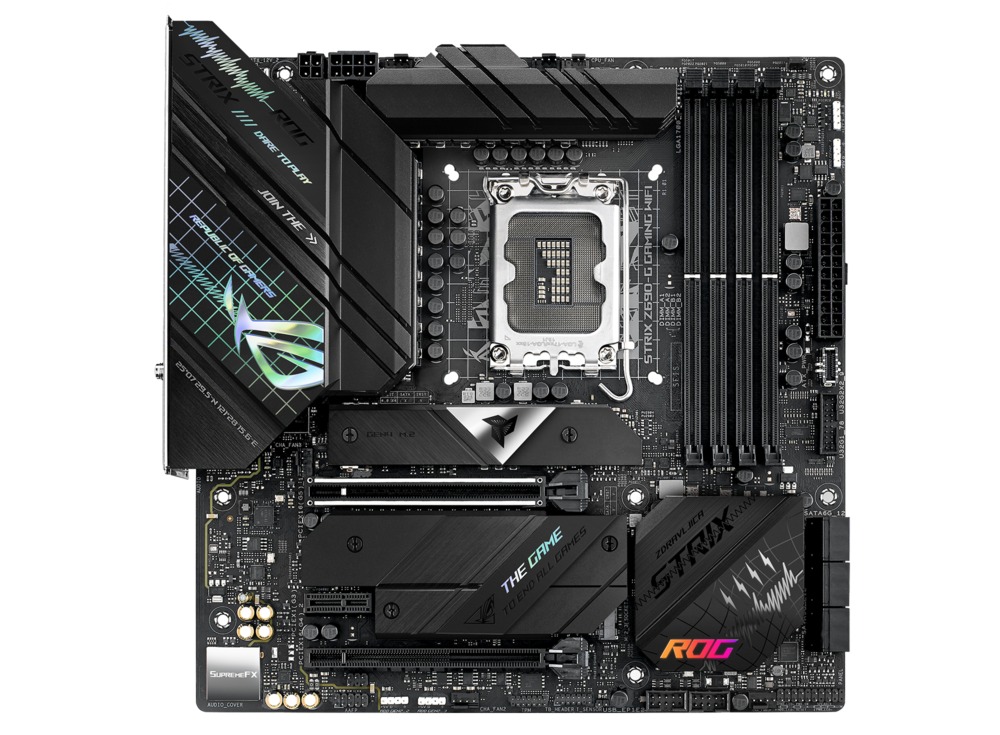

Asus ROG STRIX Z690-G WIFI Schematic

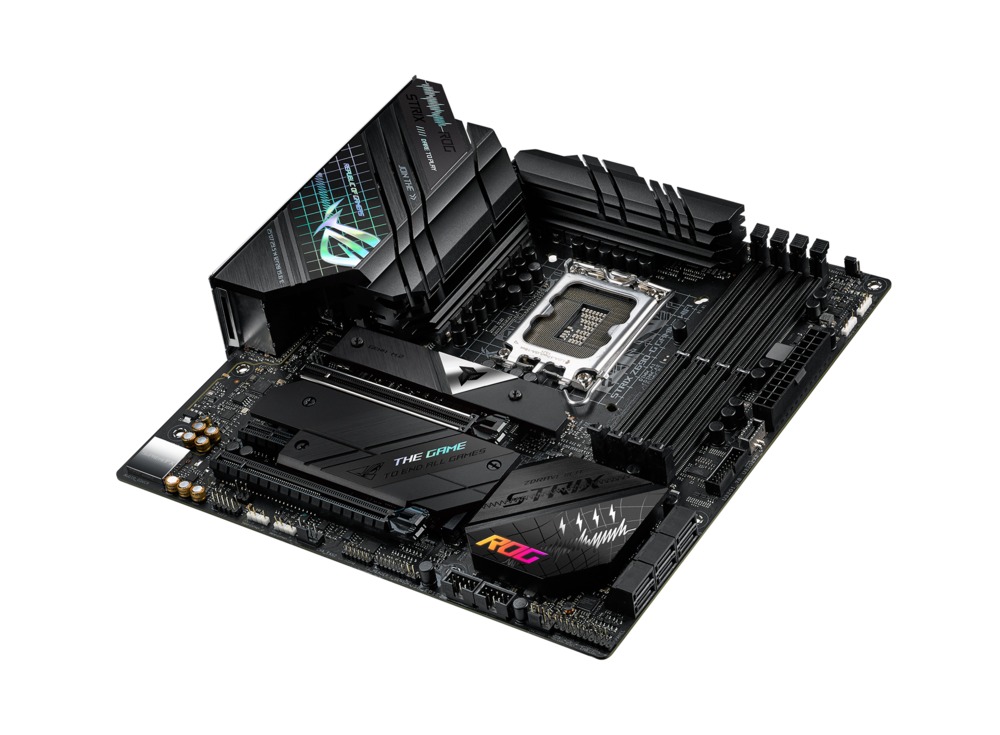

The primary PCI-Express 5.0 x16 slot is perfect for a video card - though one is not required, if the built-in graphics from the Intel processor is sufficient for your workflow. Additional PCIe x1 and x4 slots are also available for other expansion cards.
For external connectivity, it has both analog and digital audio outputs, 2.5Gb Ethernet, WiFi 6E, Bluetooth 5.1, ten USB ports of varying speeds (including a couple Type C), and HDMI & DisplayPort outputs for the on-chip Intel graphics.
Model: Asus ROG STRIX Z690-G GAMING WIFI
Specifications
| Socket | 1700 |
| CPU Compatibility | Alder Lake |
| Form Factor | MicroATX |
| Chipset Manufacturer | Intel |
| Chipset | Z690 |
| Front Side Bus | DMI 4.0 |
| Network Connectivity | 2.5G Networking + WiFi 6e |
| Network Controller | Intel 2.5GbE + Intel Wi-Fi AX210 |
| Audio Controller | Onboard Realtek ALC4080 HD Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 4800 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 128 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Dependent |
| Maximum HDMI Resolution | 4096x2160 |
| Maximum DisplayPort Resolution | 7680x4320 |
| HDMI | 1 |
| HDMI Version | 2.0 |
| DisplayPort | 1 |
| DisplayPort Version | 1.4 |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 (USB 3.1) | 2 |
| USB 3.2 Type C | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| SATA III 6.0Gbps | 6 |
| M.2 Connector | 3 |
| M.2 Support | 2x 42-80mm NVMe (Gen4), 1x 42-80mm NVMe (Gen4) + SATA |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | Intel Z690 (1-4) |
| SATA III 6.0Gbps Controller 2 | Asmedia (5-6) |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | Slot not available on this board |
| Slot 3 | PCI Express 3.0 x1 |
| Slot 4 | PCI Express 4.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0/1/5/10 |
| Built-in Webcam | No |
| Built-in Microphone | No |
| Bluetooth | Yes (5.2) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.33 kg (2.9 lbs) |
