Asus ProArt X670E-Creator WiFi Ports

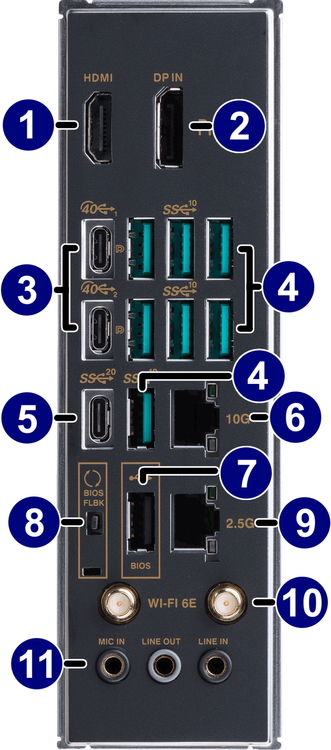

HDMI 2.0b Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160). Also supports HDR.
Displayport Input for USB C: Connect a DisplayPort cable from your video card to passthrough to the USB-C / TB port.
USB 4.0 Port(s): USB 4.0 is capable of transfer speeds of up to 40 Gbps and optionally supports video out.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Gen 2x2 Type C: Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 Type C devices (20 Gb/s).
10G LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
USB Flashback Port: Special USB port supporting BIOS flashback. Insert USB drive with BIOS file to flash BIOS.
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
Asus ProArt X670E-Creator WiFi Schematic
In terms of connectivity, this board is very well equipped with eleven total USB ports (including two USB 4.0), 2.5 and 10Gbps LAN ports, WiFi 6E, Bluetooth 5.2, and surround sound audio outputs. Because the new Ryzen 7000 CPUs have onboard graphics there is also an HDMI connection, and the pair of USB 4.0 ports can carry graphics output as well.
Internally this motherboard has four DDR5 memory slots, supporting up to 192GB of RAM. For storage, there are four SATA III ports plus four M.2 slots - one of which shares lanes with the PCI-Express slots. Speaking of expansion slots, there are two PCIe 5.0 slots, operating in one x16 or two x8 lane modes, for GPUs or other high-speed expansion cards. There is also a single PCIe 4.0 slot, with just x2 lanes, for less bandwidth-hungry cards.
Model: Asus Asus ProArt X670E-Creator WiFi
Specifications
| Socket | AM5 |
| CPU Compatibility | AMD Ryzen |
| Form Factor | ATX |
| Chipset Manufacturer | AMD |
| Chipset | X670 |
| Network Connectivity | 10G + 2.5G Networking + WiFi 6e |
| Network Controller | Marvell AQC113CS + Intel I225-V + Intel AX210 |
| Audio Controller | Onboard Realtek S1220A HD Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 5200 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 48 GB |
| Maximum Amount Supported | 192 GB |
Onboard Video | |
| Chipset Manufacturer | AMD |
| Maximum HDMI Resolution | 4096x2160 |
| HDMI | 1 |
| HDMI Version | 2.0 |
| DisplayPort | 1 |
| USB | 4.0 |
| Notes: | Display Port In - usable with dedicated GPU and USB4 display |
External Connections | |
| USB 2.0 | 1 |
| USB 3.2 Gen 2 (USB 3.1) | 7 |
| USB 3.2 Gen 2x2 Type C | 1 |
| USB 4 | 2 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 2 |
| Wireless Antenna Port | Yes |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 3 (providing 6 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 4 |
| M.2 Support | 2x 42-80mm (PCIe 5.0), 1x 42-80mm (PCIe 4.0), 1x 42-110mm (PCIe 4.0) |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | AMD X670 |
Expansion Slots | |
| Slot 1 | Slot not available on this board |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | Slot not available on this board |
| Slot 4 | Slot not available on this board |
| Slot 5 | PCI Express 5.0 x8 in a x16 size |
| Slot 6 | Slot not available on this board |
| Slot 7 | PCI Express 4.0 x2 |
Additional Information | |
| SLI Compatible | No |
| RAID Support | 0,1,10 |
| Bluetooth | Yes (5.2) |
| Dual GPU Slot Spacing | 3-Slot |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.579 kg (3.5 lbs) |
