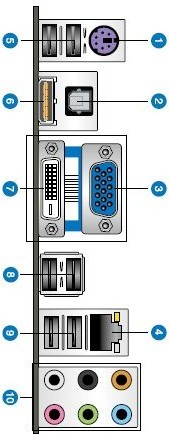

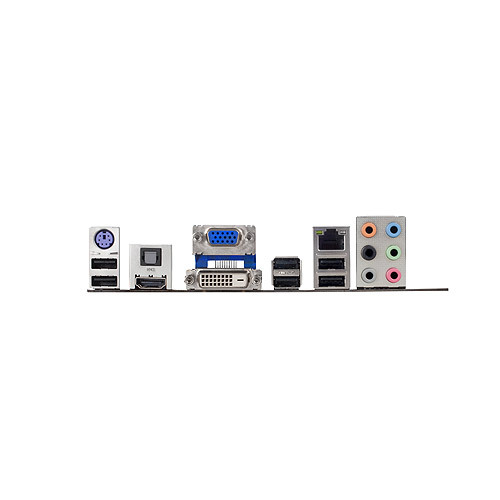

Asus P7H55-M Pro Ports
PS/2 Keyboard Port: Connection for a PS/2 keyboard.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
HDMI Out Port: High Definition Multimedia Interface (HDMI) port for outputting digital video and audio.
DVI (Single Link): Digital Video Interface (DVI) port for outputting digital video. Supports up to 1920x1200.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

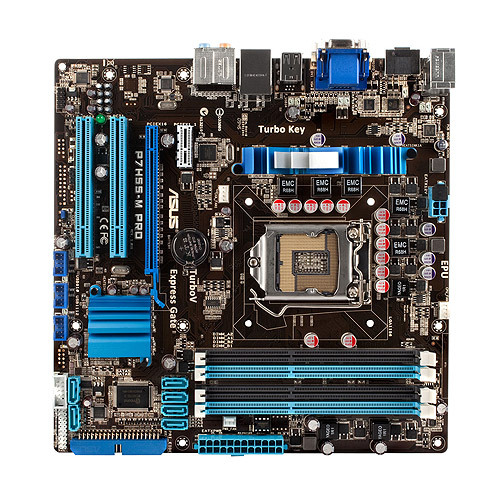

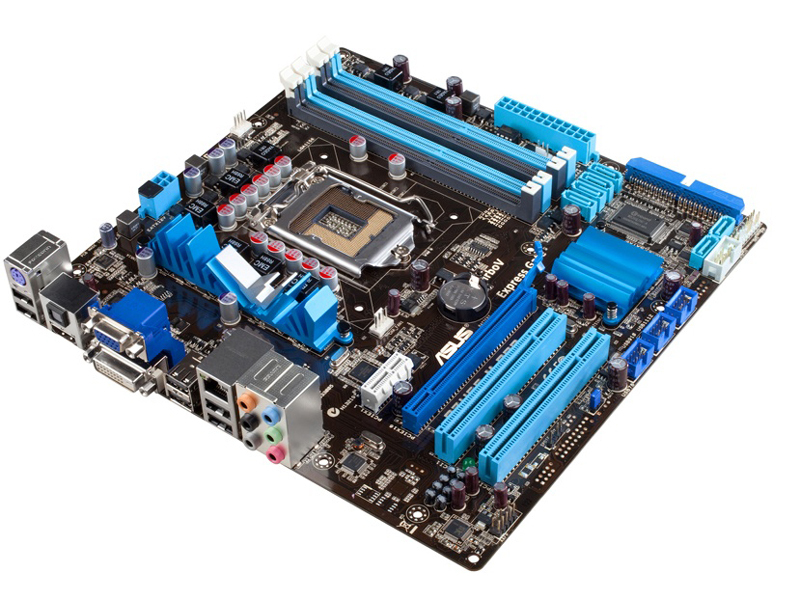

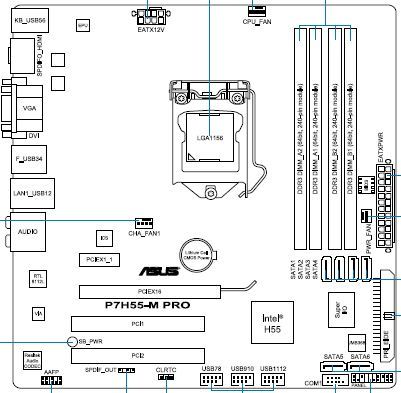

Asus P7H55-M Pro Schematic
Model: Asus P7H55-M Pro
Specifications
| Socket | 1156 |
| CPU Compatibility | Intel Core i3/i5/i7 |
| Form Factor | MicroATX |
| Chipset Manufacturer | Intel |
| Chipset | Intel H55 |
| Front Side Bus | QuickPath Interconnect |
| Wired Network Connectivity | Gigabit Networking |
| Cooling System | Heatsink |
| Number of Fans | 0 |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1333 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 4 GB |
| Maximum Amount Supported | 16 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | High Definition Graphics |
| Maximum Shared Memory | 1748 MB |
| Maximum Resolution | 1920x1200 |
| DVI | 1 |
| VGA | 1 |
| HDMI | 1 |
External Connections | |
| USB 2.0 | 6 |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
Internal Connections | |
| USB 2.0 | 3 (providing 6 ports) |
| Firewire | 1 |
| IDE | 2 Devices |
Expansion Slots | |
| Slot 1 | PCI Express x1 |
| Slot 2 | PCI Express 2.0 x16 |
| Slot 3 | PCI |
| Slot 4 | PCI |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | none |
Dimensions | |
| Height | 35 mm (1.4 in) |
| Width | 245 mm (9.6 in) |
| Depth | 245 mm (9.6 in) |
| Net Weight | 1 kg (2.2 lbs) |
Internal Connections
SATA2: 6
