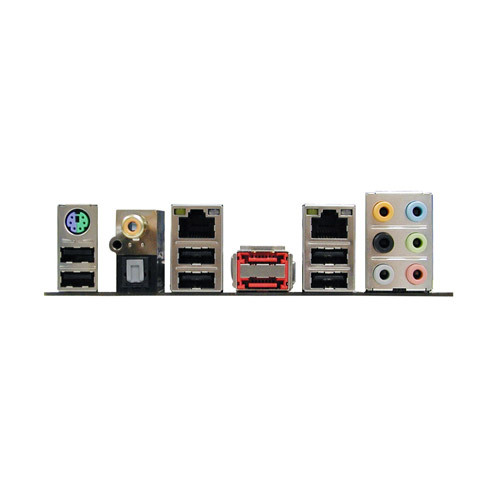

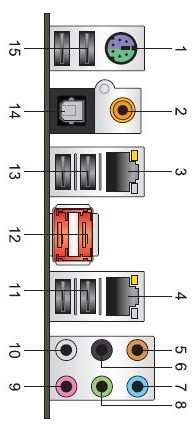

Asus P6T7 WS Supercomputer Ports
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
Coaxial S/PDIF Out: Digital audio output port compatible with coaxial S/PDIF cables / devices.
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
Center / Subwoofer Audio Jack: 3.5mm analog audio jack for output to center speaker and subwoofer (if using surround sound).
Rear Speakers: 3.5mm analog audio jack for output to rear speakers (if using surround sound).
Line In Audio Jack: 3.5mm analog audio jack for line-level input to the computer.
Front Speakers: 3.5mm analog audio jack for output to speakers (front, if using surround sound) or headphones.
Microphone Audio Jack: 3.5mm analog audio jack for microphone input to the computer.
Side Speakers: 3.5mm analog audio jack for output to side speakers (if using surround sound).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
External SATA Ports: External SATA (eSATA) port for connecting to drives directly via SATA rather than USB or Firewire.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).

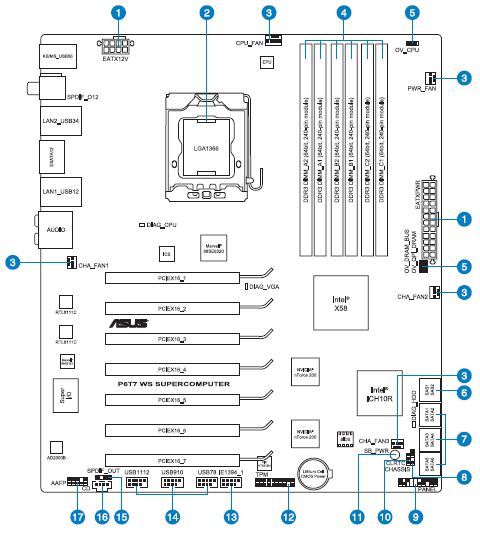

Asus P6T7 WS Supercomputer Schematic

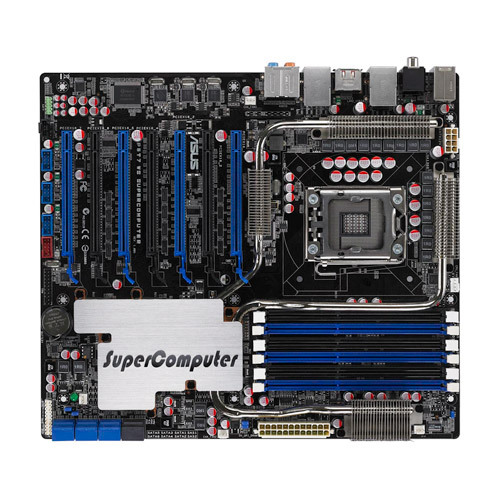

Model: Asus P6T7 WS Supercomputer
Specifications
| Socket | 1366 |
| CPU Compatibility | Core i7 |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | X58 |
| Front Side Bus | QuickPath Interconnect |
| Wired Network Connectivity | Dual Gigabit Networking |
| Network Controller | Realtek 8111C |
| Audio Controller | AD2000B 8-Channel High Definition Audio CODEC |
| Cooling System | Heat Pipes |
| Color | Black |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1600 MHz |
| Number of Slots | 6 |
| Maximum Size per Slot | 4 GB |
| Maximum Amount Supported | 24 GB |
External Connections | |
| USB 2.0 | 6 |
| PS/2 Mouse | Yes |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical and Coaxial |
| External SATA | 2 |
| LAN (RJ45) | 2 |
Internal Connections | |
| USB 2.0 | 3 (providing 6 ports) |
| SATA II 3.0Gbps | 6 |
| SAS | 2 |
SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 6 port - Intel ICH10R |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x16 |
| Slot 2 | PCI Express 2.0 x8 in a x16 size |
| Slot 3 | PCI Express 2.0 x16 |
| Slot 4 | PCI Express 2.0 x8 in a x16 size |
| Slot 5 | PCI Express 2.0 x16 |
| Slot 6 | PCI Express 2.0 x8 in a x16 size |
| Slot 7 | PCI Express 2.0 x16 |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0/1/5/10 |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
