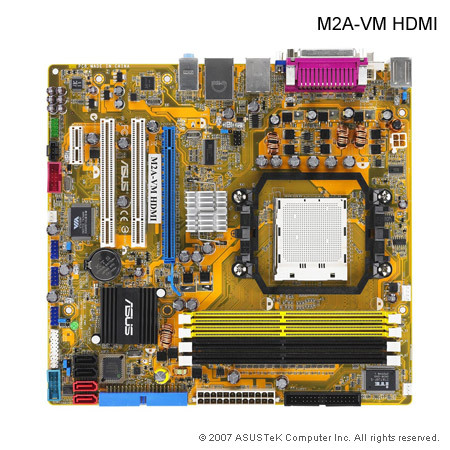

Model: Asus M2A-VM HDMI
Specifications
| Socket | AM2 |
| CPU Compatibility | Sempron, Athlon64, Athlon64 X2 |
| Form Factor | MicroATX |
| Chipset Manufacturer | AMD |
| Chipset | 690G |
| Front Side Bus | 2000Mhz HT |
| Wired Network Connectivity | Gigabit Networking |
| Cooling System | Heatsink |
Memory Support | |
| Type | DDR2 |
| Maximum Speed | 800 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 2 GB |
| Maximum Amount Supported | 8 GB |
Onboard Video | |
| Chipset Manufacturer | ATI |
| Processor Type | Radeon X1250 |
| Maximum Shared Memory | 256 MB |
| Maximum Resolution | 2048 x 1536 |
| DVI | 1 |
| VGA | 1 |
| S-Video | 1 |
| Component Video (HDTV) | 1 |
| HDMI | 1 |
| Notes: | S-Video and Component Out not available at the same time |

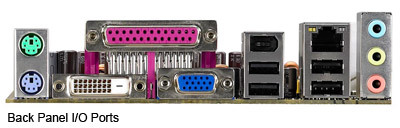

External Connections | |
| USB 2.0 | 4 |
| PS/2 Keyboard | Yes |
| PS/2 Mouse | Yes |
| Audio Out | Surround Sound (5.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 1 |
| Printer (LPT) Port | 1 |
| Firewire | 1 |
Internal Connections | |
| USB 2.0 | 3 (providing 6 ports) |
| Firewire | 1 |
| Floppy | 1 |
| IDE | 2 Devices |
Expansion Slots | |
| Slot 1 | Slot not available on this board |
| Slot 2 | Slot not available on this board |
| Slot 3 | Slot not available on this board |
| Slot 4 | PCI Express x1 |
| Slot 5 | PCI |
| Slot 6 | PCI |
| Slot 7 | PCI Express x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |

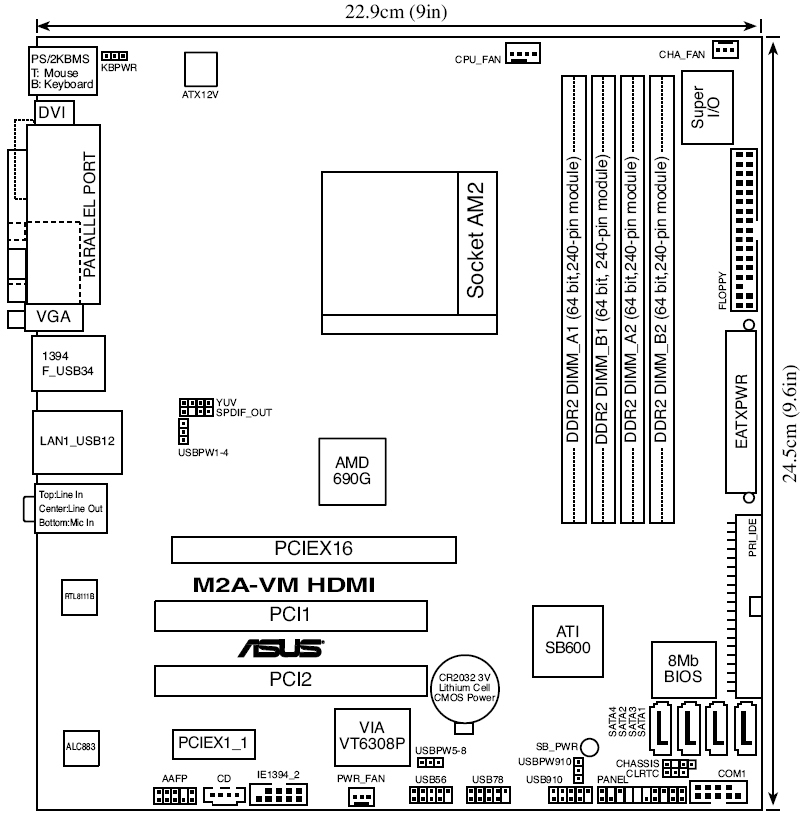

Dimensions | |
| Height | 229 mm (9.0 in) |
| Width | 245 mm (9.6 in) |
Features
- The first integrated VGA motherboard to support playback of HD DVD and Blu-ray Discs with HDCP
- Support Dual-VGA output and SurroundView
- Integrated ATI Radeon X1250-based graphics
- Bundled HDMI/AV/S/SPDIF module
Internal Connections
SATA2: 4
