ASUS ProArt Z890-Creator WiFi Ports

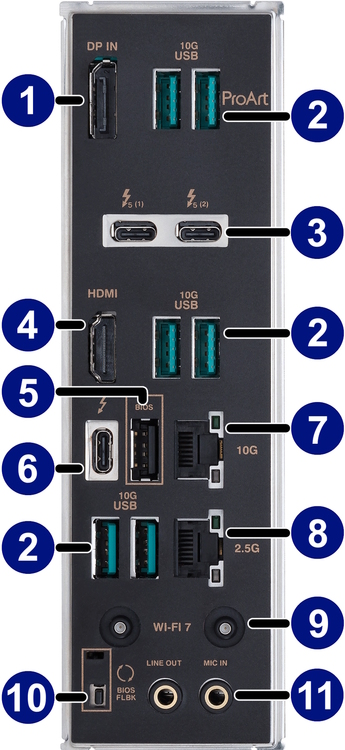

Displayport Input for USB C: Connect a DisplayPort cable from your video card to passthrough to the USB-C / TB port.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
Thunderbolt 5 Port: Thunderbolt 5 port capable of up to 120Gbps. Also compatible with USB devices.
HDMI 2.0b Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160). Also supports HDR.
USB Flashback Port: Special USB port supporting BIOS flashback. Insert USB drive with BIOS file to flash BIOS.
Thunderbolt 4 Port: Thunderbolt 4 port capable of up to 40Gbps. Also compatible with USB devices.
10G LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
ASUS ProArt Z890-Creator WiFi Schematic
In terms of external connectivity, this board is well equipped with one Thunderbolt 4 and two Thunderbolt 5 connectors, which are Type C and can be used as USB ports as well, plus six more USB 3.2 Gen 2 ports. For networking, a pair of 2.5 and 10Gbps LAN ports are available - as well as WiFi 7 and Bluetooth. Because this motherboard supports Thunderbolt, it includes a DisplayPort input on the I/O panel which allows pass-through from the video card to a TB-connected monitor. It also has an HDMI output for use with the Intel Xe-LPG graphics built into the CPU.
Internally this motherboard has four DDR5 memory slots, supporting up to 192GB of RAM. For storage, there are four SATA III ports plus five M.2 slots - one of which shares lanes with one of the PCI-Express slots. Speaking of PCI Express, there are three expansion slots available to handle a variety of expansion card configurations: two PCIe 5.0 slots (operating as one x16 or two x8 slots) and one PCIe 4.0 (only x4 mode).
Model: Asus ProArt Z890-CREATOR WIFI
Specifications
| Socket | 1851 |
| CPU Compatibility | Arrow Lake-S |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | Z890 |
| Network Connectivity | 10G + 2.5G Networking + WiFi 7 |
| Network Controller | Marvell 10G, Intel 2.5G, Qualcomm QCNCM865 WiFi 7 |
| Audio Controller | Onboard Realtek ALC1220P HD Audio |
| Cooling System | Passive Heatsink |
| Windows Support | Windows 11 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 6400 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 48 GB |
| Maximum Amount Supported | 192 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | Processor Dependent |
| Maximum Resolution | 7680?4320 |
| Maximum HDMI Resolution | 4096x2160 |
| HDMI | 1 |
| HDMI Version | 2.0b |
| Thunderbolt | 3 |
| Notes: | 2x Thunderbolt 5, 1x Thunderbolt 4 |
External Connections | |
| USB 2.0 | 1 |
| USB 3.2 Gen 2 (USB 3.1) | 6 |
| Audio Out | Stereo |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 2 |
| Wireless Antenna Port | Yes |
| Thunderbolt Ports | 3 |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2 Type C | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 5 |
| M.2 Support | 1x 42-110mm PCIe 5.0, 3x 42-80mm PCIe 4.0, 1x 42-80mm PCIe 4.0 & SATA |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 4x via Z890 Chipset |
Expansion Slots | |
| Slot 1 | Slot not available on this board |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | Slot not available on this board |
| Slot 4 | Slot not available on this board |
| Slot 5 | PCI Express 5.0 x8 in a x16 size |
| Slot 6 | Slot not available on this board |
| Slot 7 | PCI Express 4.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0/1/5/10 |
| Bluetooth | Yes (5.4) |
| Dual GPU Slot Spacing | 3-Slot |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.96 kg (4.3 lbs) |
