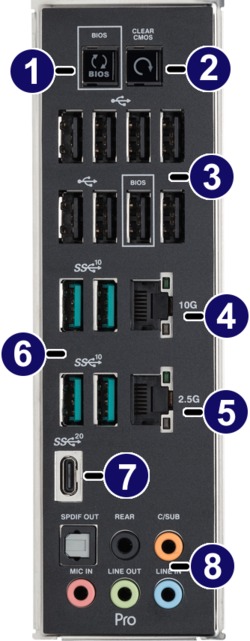

ASUS PRO WS W790-ACE Ports
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
10G LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Gen 2x2 Type C: Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 Type C devices (20 Gb/s).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

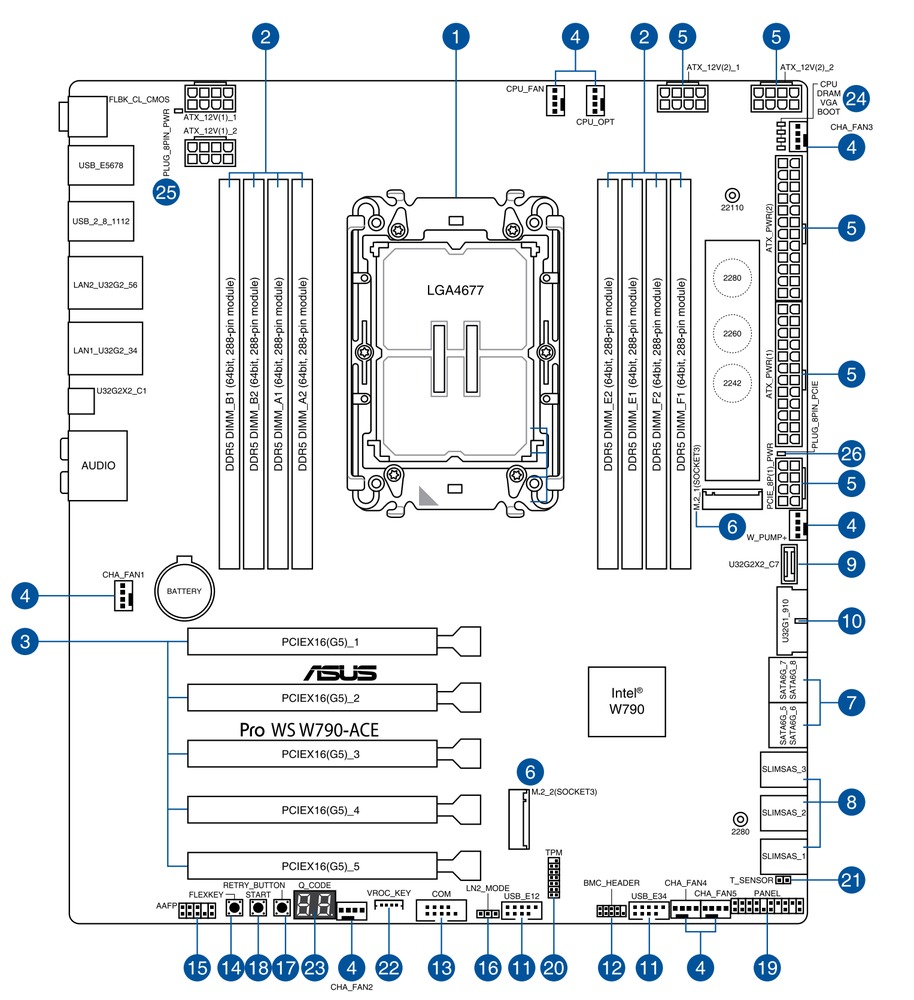

ASUS PRO WS W790-ACE Schematic
A modest range of connectivity is provided as well: twelve standard USB ports, one of the new USB Type C, 10Gb & 2.5Gb Ethernet, and both analog and digital audio. Unfortunately it is missing USB 4.0, WiFi, and Bluetooth - although the last two could be added via an external adapter if needed. Internally it has eight SATA ports and two M.2 connectors, supporting a varied array of storage options.
Specifications
| Socket | 4677 |
| CPU Compatibility | Sapphire Rapids |
| Form Factor | CEB |
| Chipset Manufacturer | Intel |
| Chipset | W790 |
| Front Side Bus | DMI 4.0 |
| Wired Network Connectivity | 10G + 2.5G Networking |
| Network Controller | Marvell 10G, Intel I225 |
| Audio Controller | Onboard Realtek S1220A HD Audio |
| Cooling System | Passive Heatsink |
| Color | Black |
| Windows Support | Windows 11 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 4800 MHz |
| Number of Slots | 8 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 2048 GB |
External Connections | |
| USB 2.0 | 8 |
| USB 3.2 Gen 2 (USB 3.1) | 4 |
| USB 3.2 Gen 2x2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
| Wireless Antenna Port | No |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| SATA III 6.0Gbps | 8 |
| M.2 Connector | 2 |
| M.2 Support | 1x 42-110mm PCIe 4.0, 1x 80mm PCIe 4.0 |
| Maximum M.2 Length | 110 mm (4.3 in) |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-M R2.0 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | Intel W790 |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | PCI Express 5.0 x16 |
| Slot 4 | PCI Express 5.0 x8 in a x16 size |
| Slot 5 | PCI Express 5.0 x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0/1/5/10 |
| Bluetooth | No |
| Dual GPU Slot Spacing | 4-Slot |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | No |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 267 mm (10.5 in) |
| Net Weight | 1.827 kg (4.0 lbs) |
Motherboard has support for dual power supplies, but only one is necessary (1200W or greater) for single GPU configurations.
