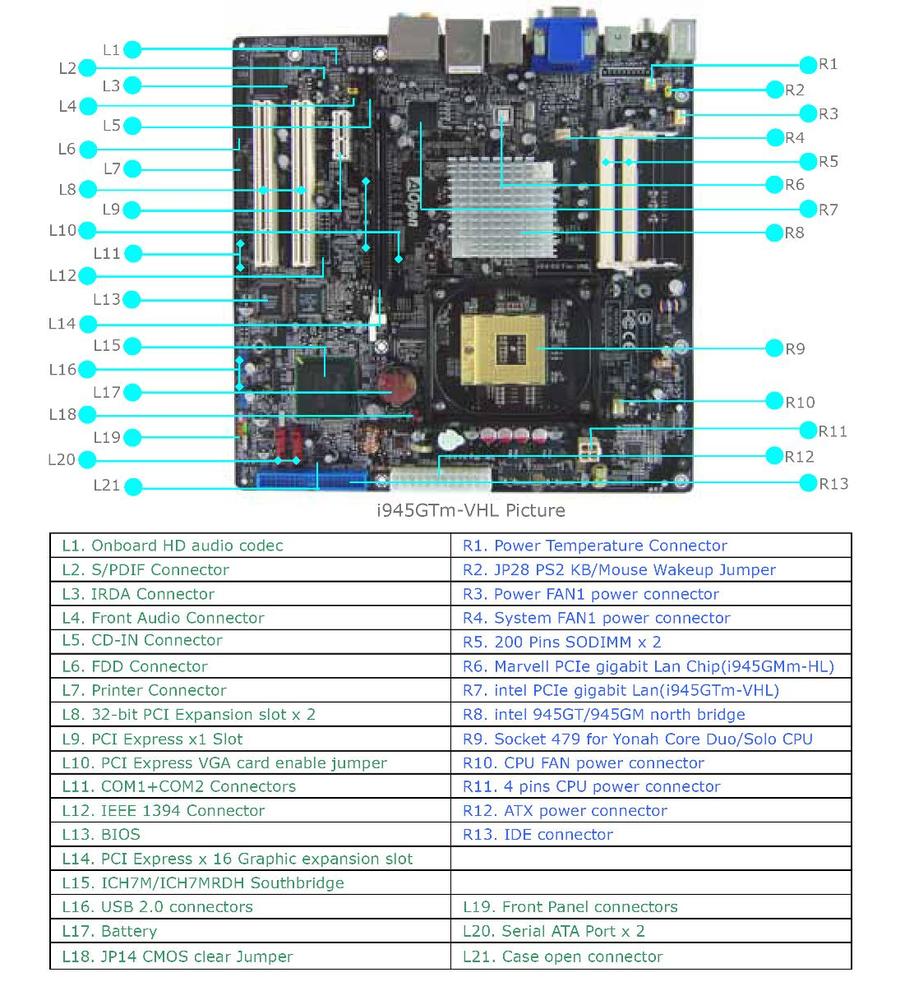

Model: AOpen i945GTm-VHL
Features
- Ready for Intel Viiv
- Support 667MHz FSB Intel Core Duo/Core Solo Socket 479 CPU
- Supports DVI Output
- Supports S-Video
- Gigabit LAN on-board
- 7.1 Channel
- Supports PCI Express x16 Graphics
- Dual Channel Memory Mode
- Support SO-DIMM DDR-II 667/533
- Serial ATA on-board
- IEEE 1394 on-board
- Supports RAID function
- Supports USB 2.0 Technology
- Wake on Keyboard
- Wake on Keyboard/ Mouse
- Wake on LAN
- Full Colored Easy Installation Guide
- Online eBook User Manual
Specifications
CPU: Intel Core 2 Duo/Core Duo/Core Solo CPU (Yonah)Socket 479667MHz
Chipset: Intel 945GTIntel ICH7MDH
Super I/O: Winbond (W83627THF)
Clock Gen: ICS
Main Memory: Dual Channel ModeSupport
Graphics: Integrated VGA Engine in chipsetPCI Express x16 (PCIe x16) slot
IDE: Integrated ATA100 and Serial ATA ControllerMax Disk
LAN: Intel Gigabit PCI Express LAN chip
Sound: Azalia 7.1 channel codec on-board (Realtek ALC882D)
USB: Integrated in chipsetUSB2.0 x 8
IEEE 1394: Agere 1394 Control Chip (FW3226-100)
Slots: PCI Express (PCIe x1) x 1PCI Express x16 Graphics (PCIe x16) x 1PCI x 2
Storage & Back Panel I/O: - Floppy Drive Connector x 1 - IDE Channel
On Board Connector: - 24-pin Power Supply Connector x 1 - 4-pin 12V Connector x 1 - CPU FAN x 1 - System FAN x 1 - Power FAN x 1 - Front Audio x 1 - Front Panel x 1 - USB Port x 2 - COM Port x 2 - IEEE 1394 x 1 - Printer Connector x 1 - S/PDIF x 1 - CD_IN x 1 - IrDA x 1
Form Factor: Micro ATX
Board Size: 244 mm x 244 mm
Accessory: Back Panel I/O Shield x 1Easy Installation Guide x 1Enhanced Full Pictured Manual x 1Bonus Pack CD disc x 180-wire IDE cable x 1Serial ATA cable x 1Serial ATA Power cable x 1CPU Retention Module x 1
Ready for Intel Viiv
Intel Viiv technology is new revolution on the entertainment PC by bringing you movies, music, games and photos in the comfort of your living room. This motherboard is designed to suppot Intel Viiv technology.
Support 667MHz FSB Intel Core Duo/Core Solo Socket 479 CPU
New generation Intel Core Duo/Core Solo Processor provides the perfect combination between high dual-core computing performance and low power consumption. This architecture is ideal for building thin and light machine that requires great computing power and efficient thermal solution to make the coolest and quietest working environment for Home Media Center or mobile desktop requirements.
Supports DVI Output
Digital Visual Interface (DVI) technology was developed to enable high-resolution applications to be run on digital flat-panel displays. This specialized usage calls for cabling that can offer high bandwidth, as well as provide excellent EMI/RFI interference reduction. Thus, you can get the best image quality on your display.
Supports S-Video
Supports PCI Express x16 Graphics
PCI Express x16 graphics delivers up to 8GB/s per direction for 3.5 times more bandwidth than AGP8X at 2.1GB/s
Serial ATA on-board
Serial ATA is to replace parallel ATA with the compatibility with existing operating systems and drivers, adding performance headroom for years to come. It reduces voltage and pin count requirements and can be implemented with thin and easy to route cables. Moreover, Serial ATA provides you an even faster transfer rate of 150 Mbytes/second.
