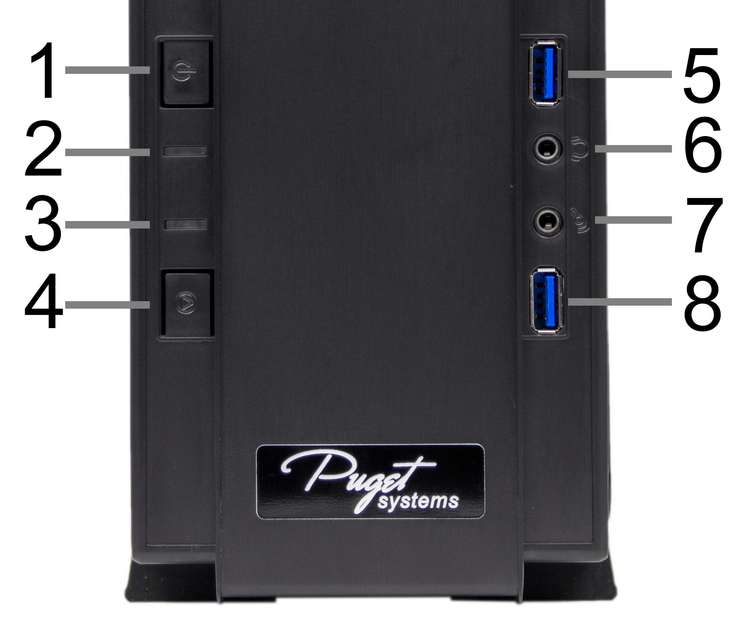

Silverstone ML07 Ports
Power Switch: On/off button for the device.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
HDD LED: Light that turns on when there is drive activity.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Model: Silverstone ML07
Specifications
| Color | Black |
| Material | Plastic front panel, steel frame |
| Type/Size | Small Form Factor |
| Maximum Motherboard Size | Mini ITX |
| Case Window | No |
Dimensions | |
| Height | 386 mm (15.2 in) |
| Width | 110 mm (4.3 in) |
| Depth | 350 mm (13.8 in) |
| Net Weight | 3.71 kg (8.2 lbs) |
| Maximum CPU Cooler Height | 83mm |
| Maximum GPU Length | 330mm |
Drive Bays | |
| Internal 3.5 inch | 1 |
| Internal 2.5 inch | 2 |
| Slim 5.25 inch | 1 |
Front Panel Connectors | |
| USB 3.0 | 2 |
| Audio In | 1 |
| Audio Out | 1 |
Cooling System | |
| Cooling Method | Air |
| Total Fan Mounts | 120mm over CPU, 2x120mm over GPU |
Features
- Designed for use in either vertical or horizontal orientation, it can be placed comfortably in any space-constrained environment that requires a powerful PC.
- Utilizing an advanced layout designed for maximum performance and a PCI-E riser, the slim Echo III is capable of housing even the biggest consumer cards.
Does NOT include an eject button for the optical drive. Drive must be ejected through the OS.
Dimensions listed are for the chassis in the vertical orientation with the rubber feet installed.
