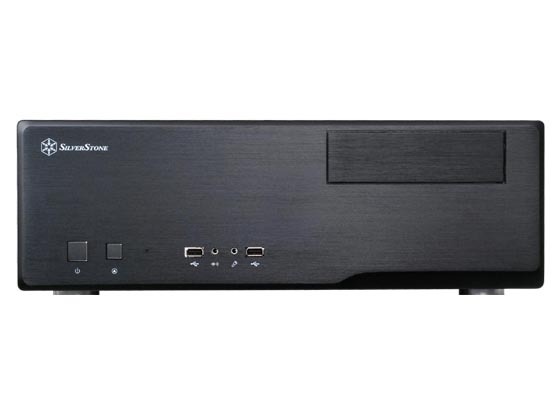

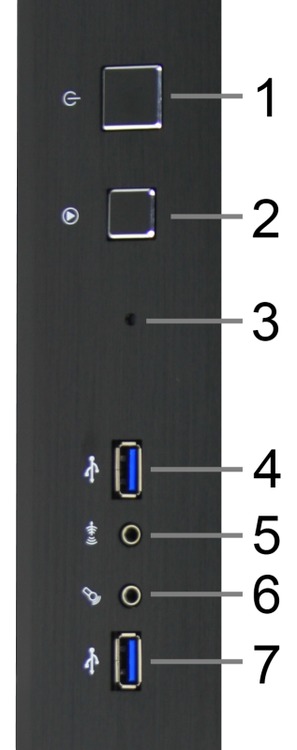

Silverstone GD05 w/ USB 3.0 (black) Ports

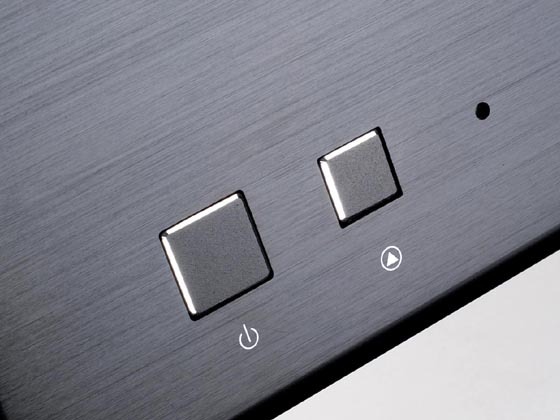

Power Switch: On/off button for the device.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).

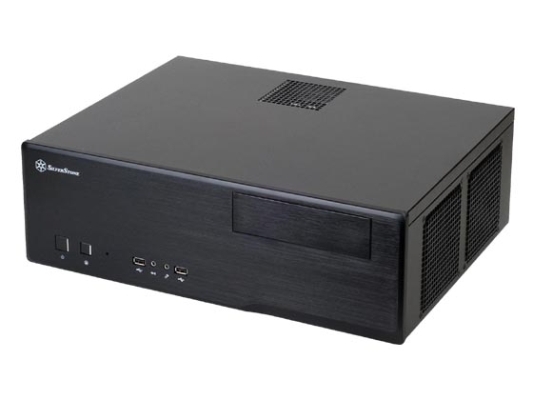

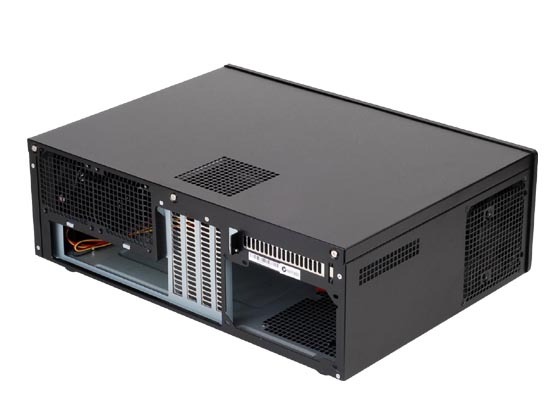

Model: Silverstone SST-GD05B-USB3.0
Specifications
| Color | Black |
| Material | Aluminum and plastic front panel, steel frame |
| Type/Size | Home Theater |
| Maximum Motherboard Size | MicroATX |
| Case Window | No |
| Power Supply | None |
Dimensions | |
| Height | 151 mm (5.9 in) |
| Width | 440 mm (17.3 in) |
| Depth | 325 mm (12.8 in) |
| Net Weight | 4.7 kg (10.4 lbs) |
| Maximum CPU Cooler Height | 70mm (120mm with removal of ODD cage) |
| Maximum GPU Length | 270mm |
| Maximum PSU Length | 180mm (220mm with removal of 120mm fan) |
Drive Bays | |
| External 5.25 inch | 1 |
| Internal 2.5/3.5 inch | 2 |
Front Panel Connectors | |
| USB 3.0 | 2 |
| Firewire | 0 |
| Audio In | 1 |
| Audio Out | 1 |
Cooling System | |

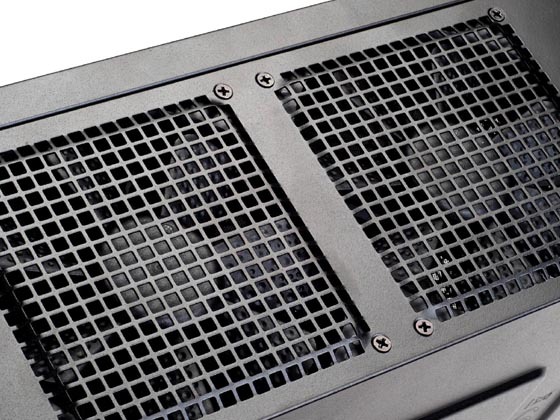

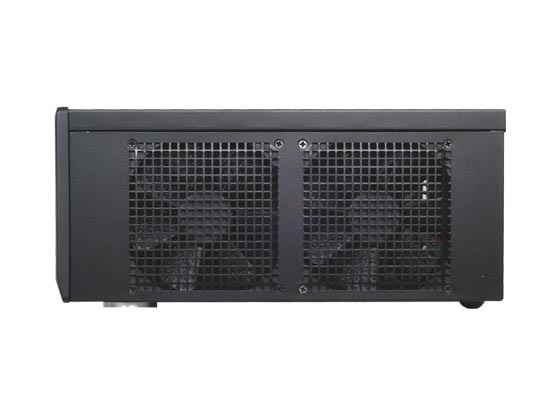

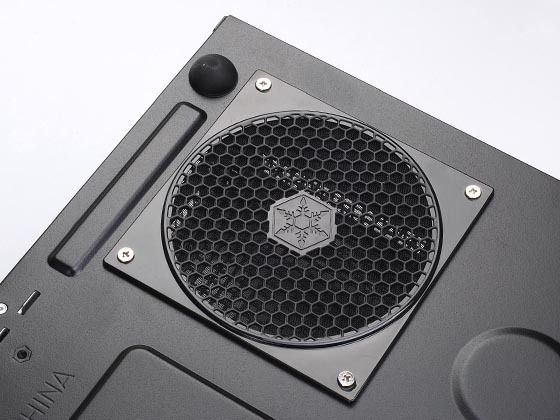

| Included Fans | 3x 120mm (intake) |
| Total Fan Mounts | 2x rear 80mm |
-Maximum functional GPU length: 270mm
-CPU cooler height can be increased to 120mm if the optical drive cage is removed.
