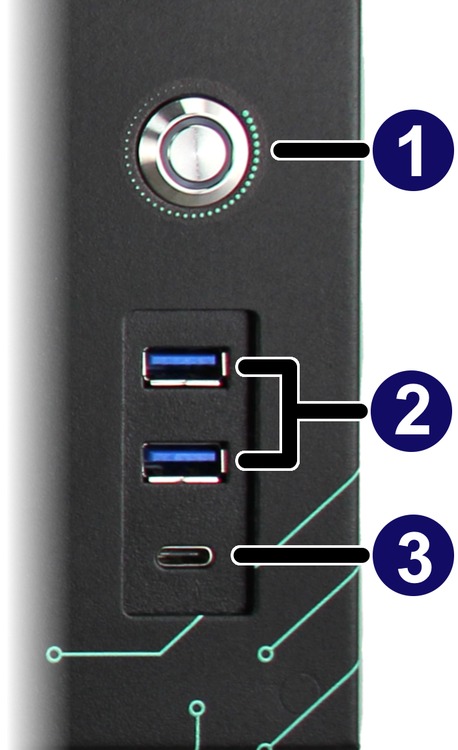

Puget CX4250i 4U Ports
Power Switch: On/off button for the device.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
Puget CX4250i 4U Dimensions
This 4U rackmount chassis is manufactured for Puget Systems by Sliger. It is based on one of their standard rackmount designs but with additional customizations to better suit the rack workstations and servers we build. It provides excellent cooling with three 120mm intake fans, a lot of expansion room internally, and mounting for a wide range of drive configurations.
Model: Sliger CX4250i.PGT
Specifications
| Color | Black |
| Material | Steel |
| Type/Size | 4U Rackmount |
| Maximum Motherboard Size | SSI EEB |
Dimensions | |
| Height | 178 mm (7.0 in) |
| Width | 432 mm (17.0 in) |
| Depth | 636 mm (25.0 in) |
| Net Weight | 11.045 kg (24.4 lbs) |
| Notes | Chassis dimensions do not include rack ears, which add 10mm to the depth as well as additional width at the front of the system (outside the rack itself) |
| Maximum CPU Cooler Height | 4U |
| Maximum GPU Length | 420 |
| Maximum PSU Length | 356 |
Drive Bays | |
| External 5.25 inch | 1 |
| External 3.5 inch | 0 |
| Internal 3.5 inch | 3 |
| Internal 2.5 inch | 4 |
Front Panel Connectors | |
| USB 2.0 | 0 |
| USB 3.0 | 2 |
| Audio In | 0 |
| Audio Out | 0 |
| eSATA | 0 |
| USB-C | 1 |
Cooling System | |
| Cooling Method | Air |
| Total Fan Mounts | 3x 120mm |
