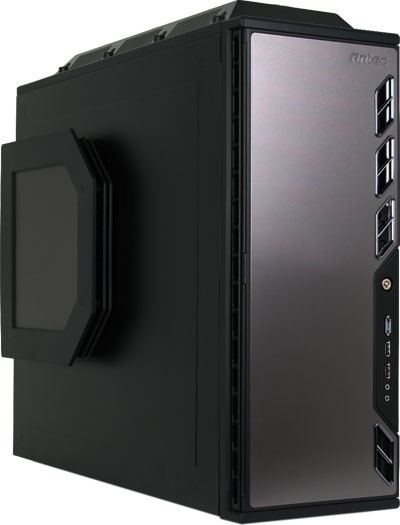

Antec P193 V3 (Gunmetal Grey with Performance Liquid Cooling Package) w/ USB 3.0 Ports

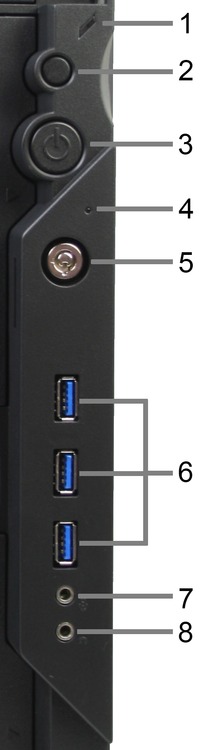

HDD LED: Light that turns on when there is drive activity.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
Power Switch: On/off button for the device.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
Door Lock: Using the included key, this will lock the front door panel closed.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.
Note: We have designed custom shipping materials for this case. Specially made foam and boxes provide superior protection during shipping! Click here for more details.
Model: Antec P193V3-Liquid-USB3
Specifications
| Color | Grey |
| Material | Aluminum and plastic shell, steel frame |
| Type/Size | Full Tower |
| Maximum Motherboard Size | EATX |
| Case Window | No |
| Power Supply | None |
Dimensions | |
| Height | 514.35 mm (20.2 in) |
| Width | 241.30 mm (9.5 in) |
| Depth | 590.55 mm (23.2 in) |
| Net Weight | 18.9 kg (41.7 lbs) |
Drive Bays | |
| External 5.25 inch | 2 |
| External 3.5 inch | 1 |
| Internal 3.5 inch | 4 |
| Internal 2.5 inch | 0 |
Front Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.0 | 1 |
| Firewire | 0 |
| Audio In | 1 |
| Audio Out | 1 |
| eSATA | 0 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | 1x120mm(rear), 2x140mm(top), 1x200mm(side) |
| Total Fan Mounts | 2x120mm(front) |

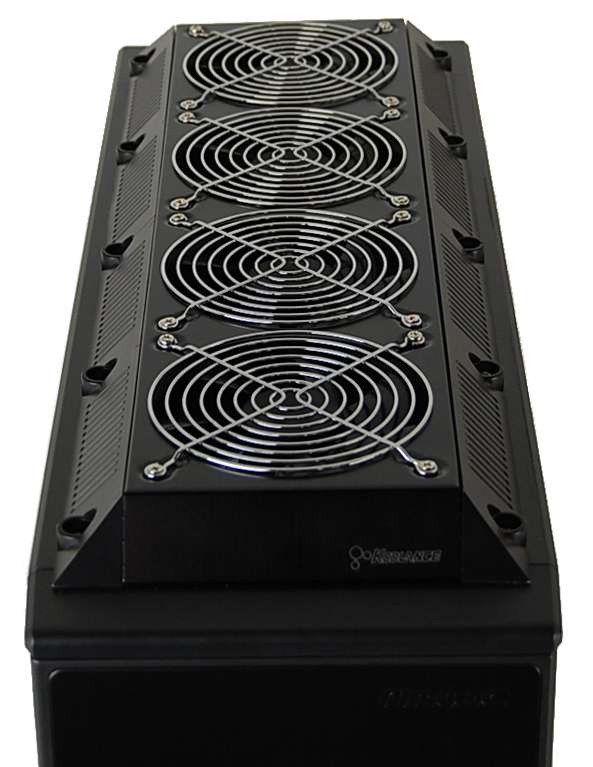

Liquid cooling package includes:
Antec P193 V3 (Gunmetal Finish) w/ USB 3.0
Koolance RP-401X2 Rev. 1.1 Single 5.25in Reservoir
Koolance PMP-400 Pump
Koolance HX-CU1320V Radiator
Koolance 120mm Radiator
4 x Scythe Slip Stream 1300RPM 120mm PWM Case Fan
Fluid color is blue by default, or matched to the case lighting kit if selected.
When purchased as part of a computer system, all necessary barbs, fittings Koolance 3/8" ID Clear PVC Tubing is included. When purchased as a part, barbs, fitting and tubing must be purchased separately.
Due to the additional space required for liquid cooling, two 5.25" bays and the top drive cage area are not available for use as they are needed to house the liquid cooling components.
