Antec Mini P180 (Gunmetal) Ports

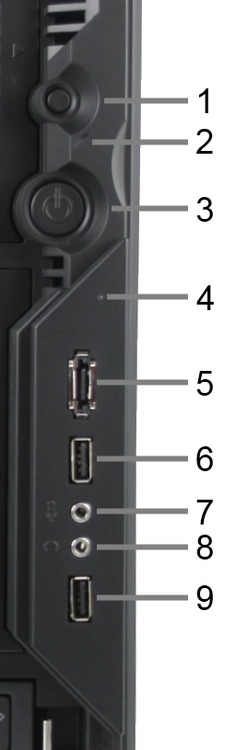

Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
HDD LED: Light that turns on when there is drive activity.
Power Switch: On/off button for the device.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
External SATA Port: External SATA (eSATA) port for connecting to drives directly via SATA rather than USB or Firewire.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Note: We have designed custom shipping materials for this case. Specially made foam and boxes provide superior protection during shipping! Click here for more details.
Model: Antec 0761345-81804-9
Specifications
| Color | Grey |
| Material | Aluminum and plastic shell, steel frame |
| Type/Size | Micro Tower |
| Maximum Motherboard Size | MicroATX |
| Case Window | No |
| Power Supply | None |
Dimensions | |
| Height | 444.5 mm (17.5 in) |
| Width | 212 mm (8.3 in) |
| Depth | 436 mm (17.2 in) |
| Net Weight | 9.5 kg (20.9 lbs) |
| Maximum GPU Length | 241mm (some video cards may require removal of the adjacent hard drive cage) |
Drive Bays | |
| External 5.25 inch | 3 |
| External 3.5 inch | 1 |
| Internal 3.5 inch | 3 |
| Internal 2.5 inch | 0 |
| Internal 2.5/3.5 inch | 2 |
Front Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.0 | 0 |
| Firewire | 0 |
| Audio In | 1 |
| Audio Out | 1 |
| eSATA | 1 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | 1 x 120mm, 1 x 200mm |
| Total Fan Mounts | 2 x 120mm Fan (front chamber) |
Features
- Configurable to accommodate graphics cards with full length PCBs
- Unique upper and lower chamber structure: the power supply resides in a separate chamber to isolate heat from the system and lower system noise.
- Cable organization for added convenience and better airflow
- Innovative three-layer side panel (aluminum, plastic, aluminum) dampens system generated noise, making this one of the quietest cases available
- Removable HDD trays with silicone grommets to isolate drive vibrations
