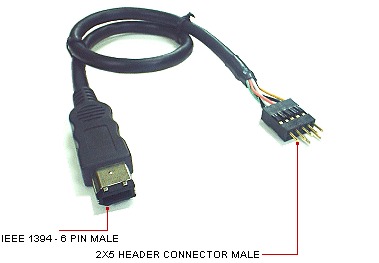

This Firewire cable/adapter connects a rear female Firewire port (6 pin) to the female header of a front panel Firewire cable. The cable exits through the PCI opening and is plugged into one of the Firewire/IEEE1394 ports located on the back of the PC.
Model: FrontX CPX509
Specifications
Product Code: CPX509
Connectors: IEEE 1394 6 pin male, 2x5 header connector male - 0.1#34; / 2.54 mm pitch
Cable: IEEE 1394 cable (UL 20276), Length - 1 foot (305 mm)
Wire Assignments
Blue: TPA +
Orange: TPA -
Green: TPB +
Red: TPB -
White: VP / Voltage + / VCC
Black: S-GND / Over Current / Shielding
