TL;DR: NVIDIA GeForce RTX 3080 Performance in Agisoft Metashape
As of its launch on 9/17/2020, the GeForce RTX 3080 is the best single video card available for Metashape! That could change with the release of the RTX 3090 later this month, of course, but that card is also going to be several hundred dollars more expensive – so we will have to wait and see if it can justify that price increase in this application. In the future we will also look into whether multi-GPU configurations are viable with this new generation of GeForce cards, and if so whether they still provide any benefit for Metashape.
Introduction
On September 1st, NVIDIA launched the new GeForce RTX 30 Series, touting major advancements in performance and efficiency. While gaming is almost always this media focus during these kinds of launches, professional applications like Agisoft Metashape should see some improvements as well.
There is a potential downside to this product launch for Metashape as well, though. We have seen some benefits to running multiple video cards in past versions of Metashape (and PhotoScan that preceded it), but the new cooler design that NVIDIA has introduced on their Founders Edition RTX 3000-series cards is even worse for multi-card configurations than the last generation. If third-party card manufacturers are able to produce RTX 3080 and 3090 cards with rear-exhaust coolers then that may still be an option, but if not then hopefully these cards are fast enough to keep users from missing out on the multi-card configurations of the past.
If you want to see the full specs for the new GeForce RTX 3070, 3080, and 3090 cards, we recommend checking out NVIDIA's page for the new RTX 30 Series cards. But at a glance, here are what we consider to be the most important specs:
| VRAM | CUDA Cores | Boost Clock | Power | MSRP | |
|---|---|---|---|---|---|
| RTX 2070 Super | 8GB | 2,560 | 1.77 GHz | 215W | $499 |
| RTX 3070 | 8GB | 5,888 | 1.70 GHz | 220W | $499 |
| RTX 2080 Super | 8GB | 3,072 | 1.65 GHz | 250W | $699 |
| RTX 3080 | 10GB | 8,704 | 1.71 GHz | 320W | $699 |
| RTX 2080 Ti | 11GB | 4,352 | 1.55 GHz | 250W | $1,199 |
| RTX 3090 | 24GB | 10,496 | 1.73 GHz | 350W | $1,499 |
| Titan RTX | 24GB | 4,608 | 1.77 GHz | 280W | $2,499 |
While specs don't always line up with real-world performance, it is a great sign that NVIDIA has roughly doubled the number of CUDA cores compared to the GeForce RTX 20 Series cards at similar price points. At the top-end of the new line, NVIDIA appears to have also combined the roles of the previous-gen RTX 2080 Ti and Titan RTX into the new RTX 3090. It has as much VRAM as the Titan did, but for $1,000 less – putting it in the same ballpark as the 2080 Ti, but with more than double the memory and CUDA cores.
Since only the GeForce RTX 3080 is fully launched at this point (the RTX 3090 is set to launch on Sept 24th, and the RTX 3070 sometime in October) we, unfortunately, will only be able to examine the RTX 3080 at this time. However, we are very interested in how the RTX 3070 and 3090 will perform, and when we are able to test those cards we will post follow-up articles with their results.
Puget Systems offers a range of powerful and reliable systems that are tailor-made for your unique workflow.
Our Labs team is available to provide in-depth hardware recommendations based on your workflow.
Test Setup
Listed below is the specifications of the system we used for our Metashape testing:
| Test Platform | |
| CPU | Intel Core i9 10900K 10 Core |
| CPU Cooler | Noctua NH-U12S |
| Motherboard | Gigabyte Z490 Vision D |
| RAM | 4x DDR4-2933 16GB (64GB total) |
| Video Card | NVIDIA GeForce RTX 3080 10GB NVIDIA Titan RTX 24GB NVIDIA GeForce RTX 2080 Ti 11GB NVIDIA GeForce RTX 2080 SUPER 8GB NVIDIA GeForce RTX 2070 SUPER 8GB NVIDIA GeForce RTX 2060 SUPER 8GB NVIDIA GeForce GTX 1080 Ti 11GB |
| Hard Drive | Samsung 960 Pro 1TB |
| Software | Windows 10 Pro 64-bit (Ver. 2004) Metashape Professional 1.6.4 |
*All the latest drivers, OS updates, BIOS, and firmware applied as of September 14th, 2020
Big thank you to Gigabyte for providing the GeForce RTX™ 3080 GAMING OC 10G sample used in our testing!
To test each video card, we used our in-house Metashape benchmark – both the standard and extended versions. Each was run twice per GPU, and the best results were included in the charts below. Here is some basic info about the image sets in these projects:
- Rock Model – 36 photos at 20 megapixels each
- School Map – 51 photos at 18 megapixels each
- School Model – 439 photos at 18 megapixels each
- Park Map – 792 photos at 18 megapixels each
We make these benchmarks publicly available under the Creative Commons BY-ND license, so if you use Metashape Professional (or get the 30-day trial) you can download them from our website and compare your system's performance with the results shown here.
Benchmark Results
Here are charts showing the performance of the new GeForce RTX 3080 compared to the other video cards we tested:
Performance Analysis
The new GeForce RTX 3080 did very well in our Metashape benchmark tests, with almost identical performance to the much more expensive Titan RTX! The overall spread of cards isn't huge when looking at the smaller image sets, with no more than 10% variance betweel all the cards we tested there, but if you are working with larger projects (multiple hundreds or thousands of images) then the differences between GPUs become more pronounced – and the RTX 3080 provides excellent processing speed for its price.

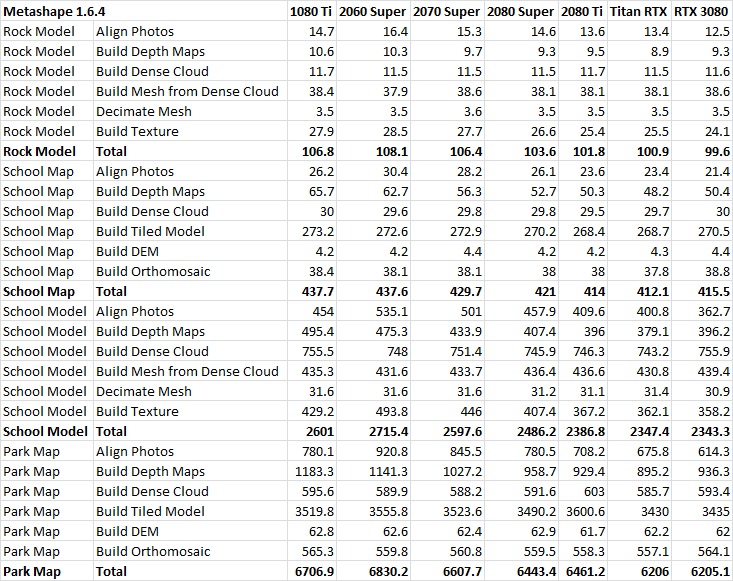

If you are curious about how the video card selection impacted individual steps within Metashape, this table shows those full details:
Is the NVIDIA GeForce RTX 3080 Good for Metashape?
Yes, as of this writing the RTX 3080 is the best single video card for Metashape! That could change with the release of the RTX 3090 later this month, of course, but that card is also going to be several hundred dollars more expensive – so we will have to wait and see if it can justify that price increase in this application. It will also be worth looking at any other RTX 30 Series cards that follow these, as a lower priced card can sometimes provide a better price:performance ratio. In the future we will also look into whether multi-GPU configurations are viable with this new generation of GeForce cards, and if so whether they still provide any benefit for Metashape.
As always, please keep in mind that these results are strictly for photogrammetry in Agisoft Metashape. If you have performance concerns for other applications in your workflow, we highly recommend checking out our Hardware Articles (you can filter by "Video Card") for the latest information on how a wide range of programs perform with various GPUs, CPUs, and other hardware.
